ASUS Z87-A LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

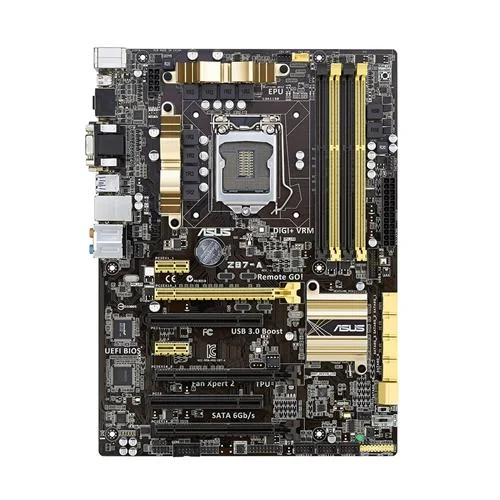

The ASUS Z87-A is a ATX motherboard for LGA1150. It supports DDR3 memory up to 2800 MT/s (OC).
- Dual Intelligent Processors 2 with DIGI+ VRM
- Remote GO! - One-stop PC Remote Control and Home Entertainment
- Fan Xpert 2 - The Most Customizable Fan Controls
- USB 3.0 Boost - Faster USB 3.0 with UASP in Windows 8
- Overclock capabilities
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z87-A |
| Launch Date | |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z87 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1800 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2500 / DDR4-2600 / DDR4-2666 / DDR4-2800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | |
| PCIe x16 (Qty) | 0 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

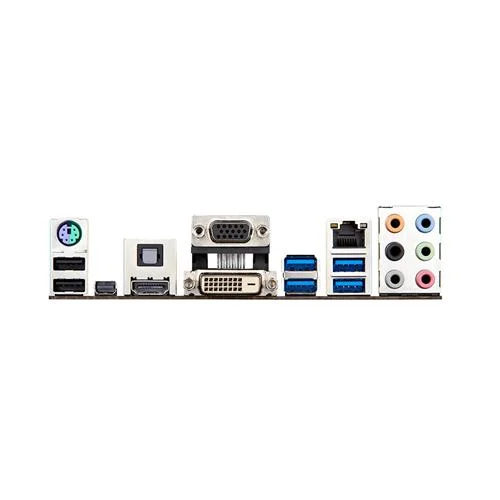

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z87-A |
| SKU Code | Z87-A |
| GTIN / EAN | 886227494248 |
