ASUS Z97I-PLUS LGA1150 Mini-ITX DDR3 16 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

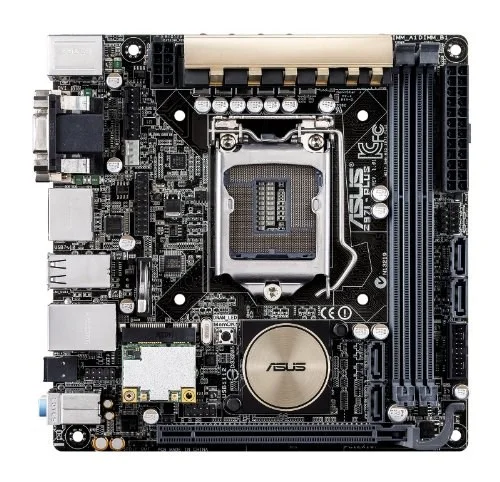

The ASUS Z97I-PLUS is a Mini-ITX motherboard for LGA1150. It supports DDR3 memory up to 3200 MT/s (OC).
- High-performance Z97 mini-ITX boasts exceptionally-smart layout for ATX capability, with 802.11ac Wi-Fi, speedy M.2 and enduring 5X Protection
- An exceptionally-smart layout for ATX-level capability and compatibility
- Professionally-engineered audio and Intel Gigabit Ethernet – a game-winning combo!
- Speed up your system with lightning-fast 10Gb/s M.2
- ASUS HomeCloud with 802.11ac Wi-Fi – Access your PC remotely and stream multimedia content anywhere, anytime
- Proven quality – 5X Protection. 1000+ compatible devices. 7000+ validation hours.
- Full ATX-level performance
- Support for M.2 storage (on back of board)
- 802.11ac Wi-Fi
- Mediocre onboard audio
Specifications
| Manufacturer | ASUS |
|---|---|
| Model Number | Z97I-PLUS |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel Z97 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 16 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1800 / DDR4-1866 / DDR4-2000 / DDR4-2133 / DDR4-2200 / DDR4-2400 / DDR4-2500 / DDR4-2600 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3100 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |

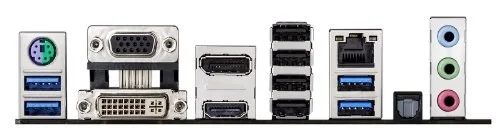

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z97I-PLUS |
| SKU Code | Z97I-PLUS |
| GTIN / EAN | 886227764563 |
