BIOSTAR B550GTA AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

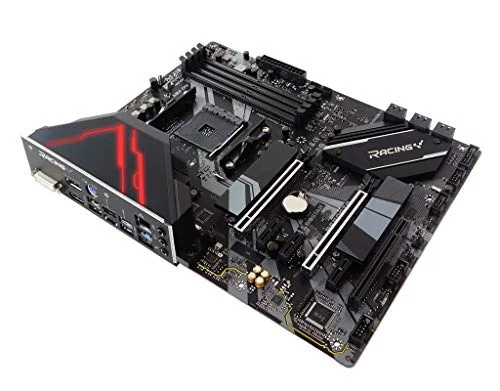

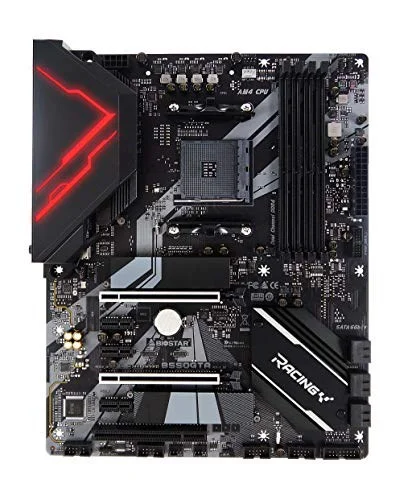

The BIOSTAR B550GTA is a ATX motherboard for AM4. It supports DDR4 memory up to 4400 MT/s (OC).
- Supports AMD 3Rd Gen Ryzen (Matisse) And Future Ryzen 4Th Gen Series Processors
- 4 Year BIOSTAR VIP Care Warranty
- Supports 4-DIMM DDR4-4933+(OC)/4800(OC)/4600(OC)/4400(OC)/4000(OC)/3800(OC)/3600(OC)/3200(OC)/2933/2667/2400/2133/1866 Up To 128GB Maximum Capacity
- Supports Pcie M.2 4.0 (64Gb/S), USB 3.2 Gen2, HDMI 4K Resolution
- DIY+: Vivid LED DJ, LED ROCK ZONE, BIOSTAR RGB SYNC
Specifications
| Manufacturer | Biostar |
|---|---|
| Model Number | B550GTA Ver. 5.0 B550GTA RACING B550GTA |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-1866 / DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-4000 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

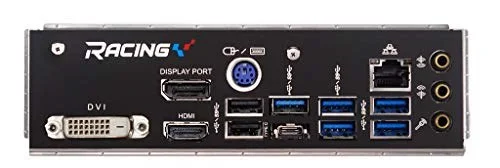

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B550GTA Ver. 5.0 |
| SKU Code | B550GTA Ver. 5.0 |
| GTIN / EAN | 802700508592 |
Price History (last 12 months)
Plots available price points within the past 12 months.
