Biostar B560GTQ Racing LGA1200 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

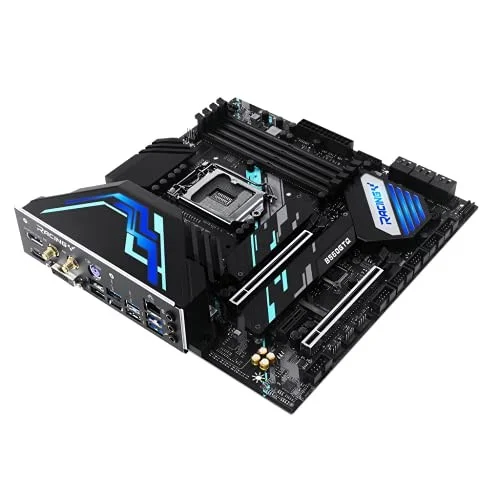

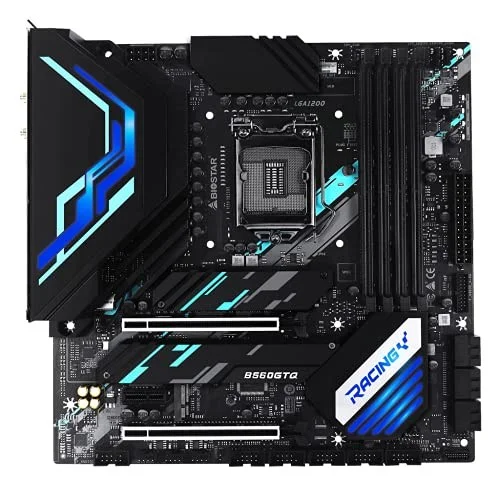

The Biostar B560GTQ Racing is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 4000 MT/s (OC).
- Supports 11Th And 10Th Generation Intel Core Processor
- Micro ATX Form Factor
- Intel B560 Single Chip Architecture
- Ultra Fast Plotting Speed For Chia Mining
- 6 X SATA III Connectors (6Gb/S)
- Supports Pcie M.2 4.0 (64Gb/S)
- Supports Pcie 4.0 (With 11Th Gen Intel Processor)
- Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) Up To 128 GB Memory
- Supports USB 3.2 Gen2x2 Type C
- Supports Wifi 6 (Wifi 6 Card NOT Included - Must Purchase Key-E Wi-Fi Card Separately)
Specifications
| Manufacturer | Biostar |
|---|---|
| Model Number | b560gtq |
| Launch Date | May 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B560 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 - M Key (Intel 11th Gen only), 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

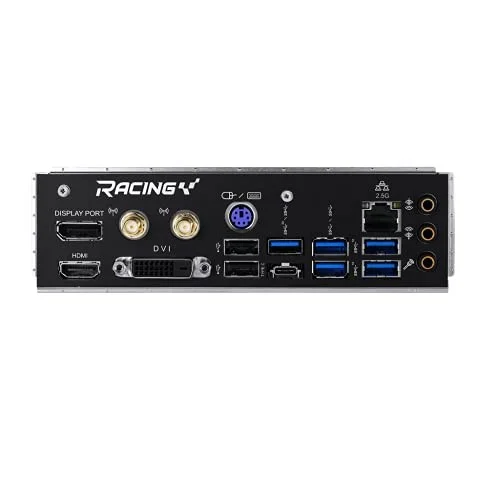

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | b560gtq |
| SKU Code | b560gtq |
| GTIN / EAN | 802700508776 |
