Description

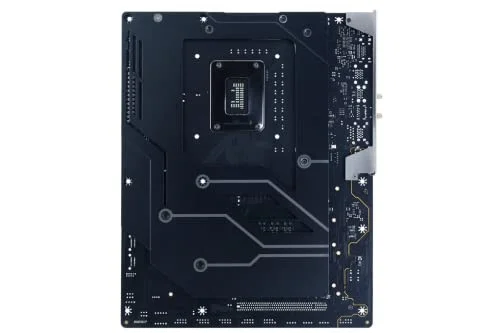

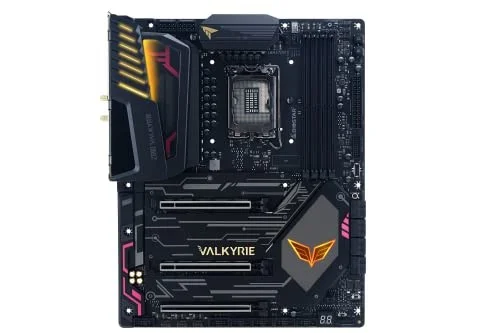

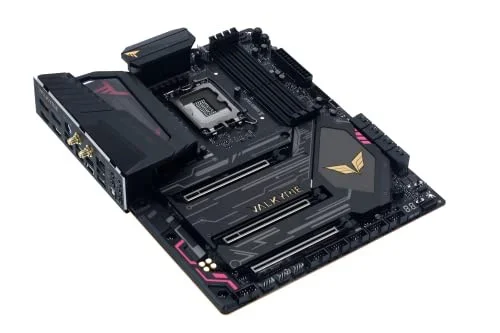

The Biostar Z690 VALKYRIE is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).
- Supports 12Th Generation Intel Core Processor LGA 1700
- Intel Z690 Single Chip Architecture
- Supports Dual Channel DDR5 6000+(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 4800 Up To 128 GB Memory
- Supports Pcie 5.0
- Supports Pcie M.2 (64Gb/S)
- Supports Display Port 5K
- Supports 2.5 Gbe LAN
- Supports Intel Optane Technology
- Supports USB 3.2 Gen2x2 Type C
- Supports Wifi 6E Module (No Wifi 6E Card Included)
Specifications
| Manufacturer | Biostar |
|---|---|
| Model Number | Z690 VALKYRIE |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-6000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 5 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

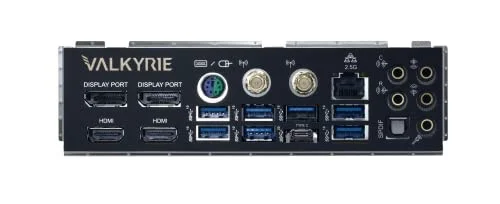

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | Z690 VALKYRIE |
| SKU Code | Z690 VALKYRIE |
| GTIN / EAN | 690124303271 |
