Colorful CVN X570M GAMING PRO V14 AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

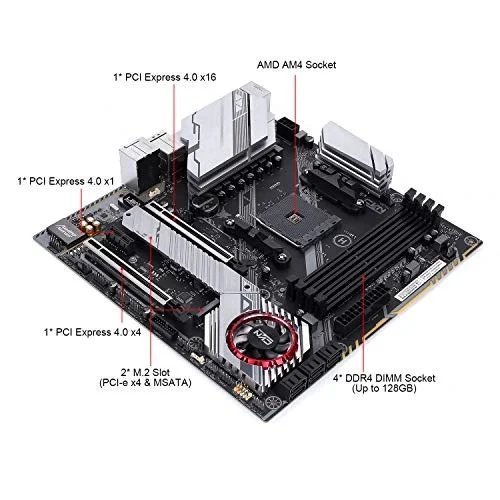

The Colorful CVN X570M GAMING PRO V14 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4000 MT/s (OC).
- Support AMD AM4 Socket Ryzen 2000 And 3000 Series Processor;
- 4 DIMM Slots,Support Dual Channel DDR4 Memory,When Using Ryzen 2000 Series Processor,Support 2933/2800/2666/ 2400/2133MHZ Memory,When Using Ryzen 3000 Series Processor,Support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ Memory.
- 1X PCI Express4.0X16,1Xpci Express4.0X4 Slots(Support 2-Way AMD Crossfire); 6Xsata3.0 6Gb/S Ports; 1Xpci Express4.0X1 And 2Xm.2(Support MSATA And PCI-E Gen4 X4 SSD) Slots.
- Space Sliver Color Cooling Armor Equipped With Red Annular Metal Energy Core And Wire Drawing Technology To Highlight Its CVN Aestheticism. More Dissipation Area On Cooling Armor To Enlarge Air Flow Contact, To Generate Stronger Cooling Performance.
- High Thermal Conductivity Materials To Enhance The Heat Dissipation Of Power, Memory, And Chipsets; Energy Core Cooling Armore Provide More Dissipation Area On Cooling Armor To Enlarge Air Flow Contact And Generate Stronger Cooling Performance.
Specifications
| Manufacturer | Colorful |
|---|---|
| Model Number | CVN X570M GAMING PRO V14 |
| Launch Date | January 2021 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3800 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | CVN X570M GAMING PRO V14 |
| SKU Code | CVN X570M GAMING PRO V14 |
| GTIN / EAN | 769773320622 |
