EVGA B360 Micro Gaming LGA1151 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

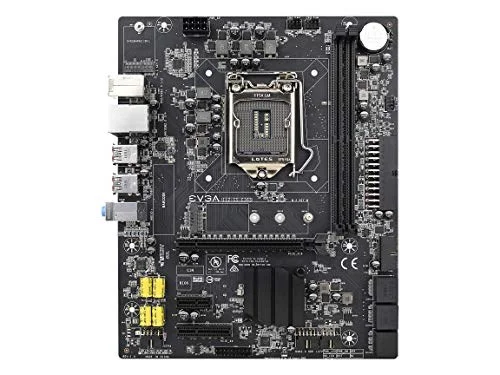

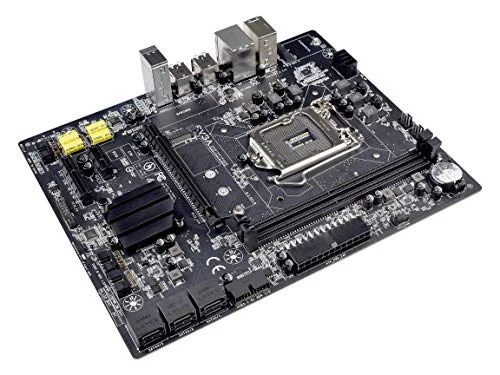

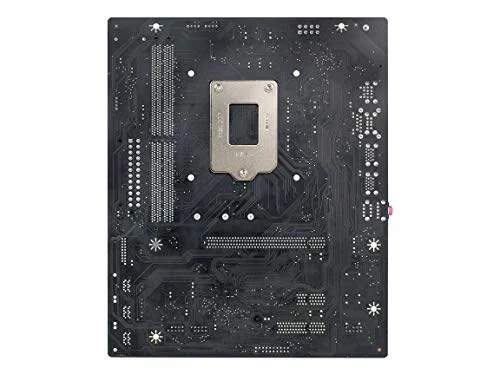

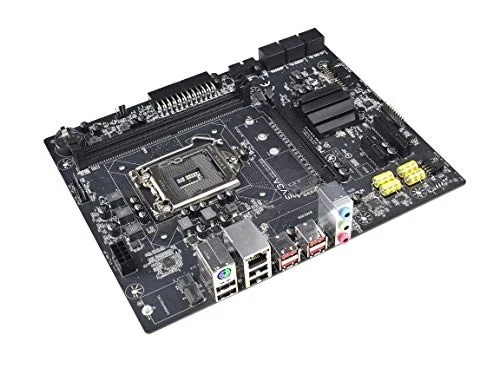

The EVGA B360 Micro Gaming is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 4133 MT/s (OC).
- Intel B360 Chipset, Supports Intel Core 8Th Generation Processor Family For LGA1151 Socket
- Micro ATX Form Factor
- 2 DIMM Dual-Channel Up To 32GB 2667+ Mhz
- 5 USB 2. 0 Ports (4X Rear Panel, 1X From 1 Internal Header), 2 USB 3. 1 Gen1ports (From Internal Header) , 4 USB 3. 1 Gen2 Ports (4X Rear Panel Type-A)
- 6 SATA, 2 M. 2 Key-M 80Mm Up To 32Gbps, 1 M. 2 Key-E 32Mm, 1X Intel I219 Gigabit NIC (10/100/1000)
- Get Grip Game + EVGA Vehicle Skin W/ Purchase, Redeemed At EVGA Website, While Supplies Last
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 112-CS-E365-KR |
| Launch Date | October 2018 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B360 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 112-CS-E365-KR |
| SKU Code | 112-CS-E365-KR |
| GTIN / EAN | 843368054564 |
