EVGA X299 FTW K LGA2066 EATX DDR4 256 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

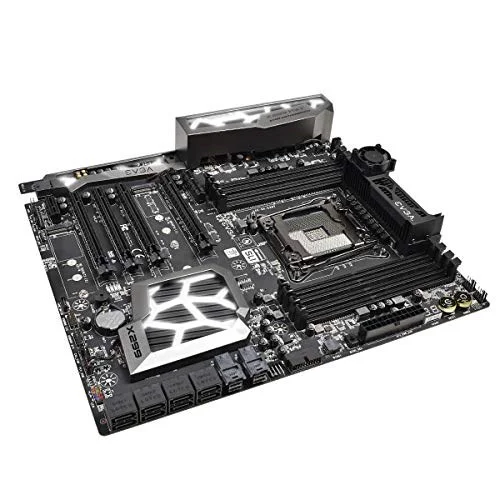

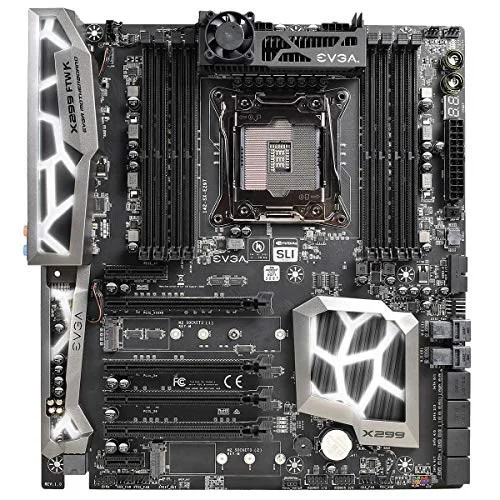

The EVGA X299 FTW K is a EATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).
- Supports Intel Core 7th Generation Processor Family for 2066 socket
- EATX Form Factor
- 8 DIMM Quad Channel DDR4 up to 128GB 4000MHz+
- Skylake-X, and 64GB 4133MHz+ Kaby Lake-X
- 4 USB 2.0 Ports (2 internal headers), 8 USB 3.0 Ports (6 rear panel, 2 from
- 1 internal header), 2 USB 3.1 Ports (1x Type-A, 1x Type-C)
- 8 SATA 3.0 Ports, 2 M.2 Key-M 110,80mm (up to 32Gbps), 1 M.2 Key-E 32mm, 2 U.2 Port
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 142-SX-E297-KR |
| Launch Date | |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3000 / DDR4-3200 / DDR4-3600 / DDR4-3733 / DDR4-3866 / DDR4-4000 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 142-SX-E297-KR |
| SKU Code | 142-SX-E297-KR |
| GTIN / EAN | 843368049492 |
Price History (last 12 months)
Plots available price points within the past 12 months.
