EVGA X299 MICRO ATX 2 LGA2066 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

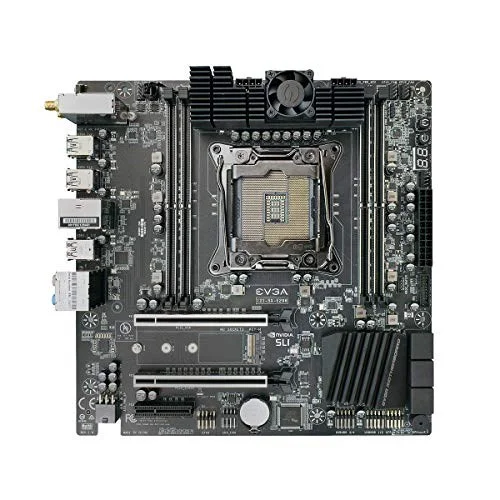

The EVGA X299 MICRO ATX 2 is a Micro-ATX motherboard for LGA2066. It supports DDR4 memory up to 4133 MT/s (OC).
- Supports Intel Core X-Series Cascade Lake-X And Skylake-X Processors For 2066 Socket
- Matx Form Factor + Metal-Reinforced Pcie And DIMM Slots
- 32GB DIMM Support - Quad-Channel DDR4 Up To 128GB 4000Mhz+ Cascade Lake-X/Skylake-X
- New EVGA GUI BIOS Features In-Bios Stress Test And OC Robot To Auto-Overclock Your CPU And Set Per Core Clock Speeds And Voltages
- Highly-Efficient 14 Phase Digital VRM With Actively-Cooled VRM Heatsink
- 4 USB 2. 0 Ports (2 Internal Headers), 8 USB 3. 1 Gen1 Ports (6 Rear Panel, 2 From 1 Internal Header), 2 USB 3. 1 Gen2 Ports (Type-A)
- 6 SATA 6 Gb/S Ports, 1 M. 2 Key-M 80Mm (Up To 32Gbps), 1 M. 2 Key-E 32Mm
- New Integrated EVGA Wi-Fi/BT Module + Flash BIOS Without A CPU
- Get Grip Game + EVGA Vehicle Skin W/ Purchase, Redeemed At EVGA Website, While Supplies Last
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-SX-E296-KR |
| Launch Date | December 2018 |
| CPU Socket | LGA2066 |
| Chipset Model | Intel X299 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3466 / DDR4-3600 / DDR4-3733 / DDR4-4000 / DDR4-4133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-SX-E296-KR |
| SKU Code | 121-SX-E296-KR |
| GTIN / EAN | 843368052744 |
