EVGA X570 DARK AM4 EATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

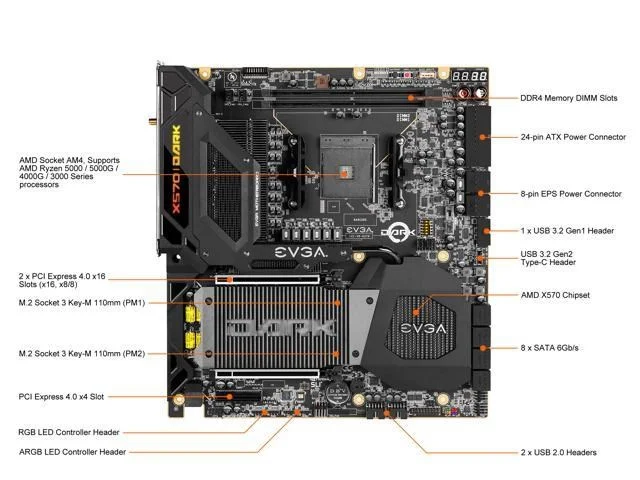

The EVGA X570 DARK is a EATX motherboard for AM4. It supports DDR4 memory up to 4800 MT/s (OC).
- EVGA X570 DARK, 121-VR-A579-KR, AM4, AMD X570, PCIe Gen4, SATA 6Gb/s, 2.5Gb/s LAN, Wi-Fi 6/BT5.2, USB 3.2 Gen2, M.2, EATX, AMD Motherboard Number of Memory Slots: 2×288pin Memory Standard: DDR4 4800+ (OC) PCI Express x4: 1 x PCIe 4.0 x4 Audio Chipset: Realtek 1220 Audio Channels: 7.1 Channels Max LAN Speed: Dual 10/100/1000/2500Mbps Maximum Memory Supported: 64GB Channel Supported: Dual Channel
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-VR-A579-KR X570 DARK |
| Launch Date | |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel X570 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4066 / DDR4-4133 / DDR4-4200 / DDR4-4266 / DDR4-4300 / DDR4-4333 / DDR4-4400 / DDR4-4500 / DDR4-4533 / DDR4-4600 / DDR4-4666 / DDR4-4700 / DDR4-4733 / DDR4-4800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-VR-A579-KR |
| SKU Code | 121-VR-A579-KR |
| GTIN / EAN | 843368071745 |
