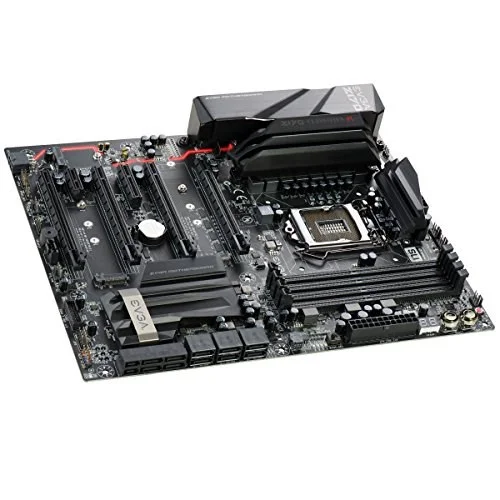

EVGA Z170 Classified K LGA1151 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The EVGA Z170 Classified K is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3600 MT/s (OC).
- Supports Intel 6 Generation Socket LGA-1151 Processors
- Intel Z170 Chipset
- Enthusiast Layout Supporting 2-Way SLI + PhysX
- 4 DIMM Dual-Channel DDR4 3600MHz+ (64GB)
- 2 USB 2.0 Ports, 6 USB 3.0 Port, 2 USB 3.1 Ports, 1 HDMI Port, 1 DisplayPort 1.2 Port
- ATX Form Factor
- Solid state capacitors
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 142-SS-E178-KR |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 2 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 142-SS-E178-KR |
| SKU Code | 142-SS-E178-KR |
| GTIN / EAN | 843368037451 |
