EVGA Z490 Dark K|NGP|N Edition LGA1200 EATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

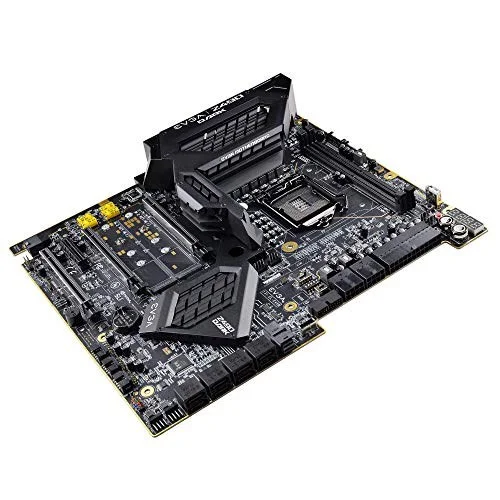

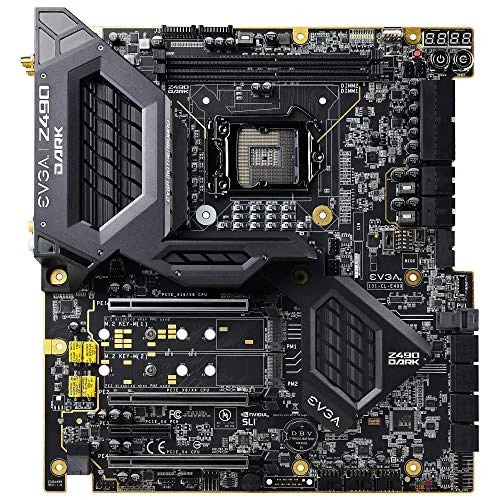

The EVGA Z490 Dark K|NGP|N Edition is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5000 MT/s (OC).
- Intel Z490 Chipset, Supports Intel Core 10Th Generation Processor Family For LGA1200 Socket
- Revolutionary Design, Featuring Right-Angle Power Connectors On The Same Side To Enhance Both Cable-Management And Cooling
- E-ATX Form Factor, 10 Layer PCB, 18 Phase PWM, Metal Reinforced Pcie Slots, Supports EVGA ELEET X1, NVIDIA SLI Ready
- 2 DIMM Dual-Channel Supports Up To 64GB 5000+ Mhz, 7 USB 3. 2 Gen2 Ports (5X Type A, 1X Type-C, 1X Type-C Header)
- 8 SATA 6Gb/S, 2X M. 2 Key-M 110Mm, 1X M. 2 Key-E 32Mm With Installed Wifi 6/BT 5. 1, 1X U. 2 Nvme Port, 1X Intel 2. 5 Gigabit NIC, 1X Intel Gigabit NIC
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 131-CL-E499-KP |
| Launch Date | December 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z490 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-3000 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4400 / DDR4-4600 / DDR4-4800 / DDR4-5000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 131-CL-E499-KP |
| SKU Code | 131-CL-E499-KP |
| GTIN / EAN | 843368067618 |
