EVGA Z590 Dark LGA1200 EATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

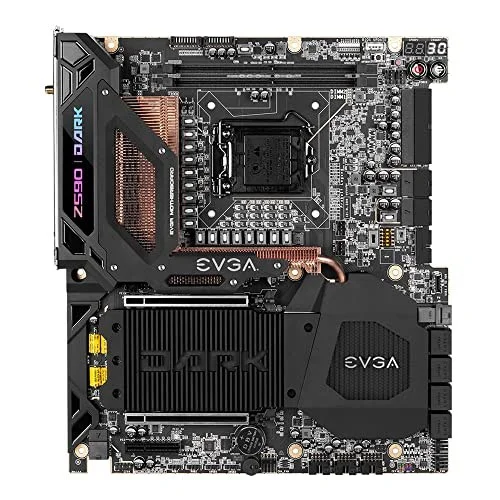

The EVGA Z590 Dark is a EATX motherboard for LGA1200. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel Z590 Chipset, Supports Intel Core 11th/10th generation processor families for LGA1200 socket
- PCIe Gen4, M.2 Gen4, ATX Form Factor, 10 Layer PCB, 21 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
- 2 DIMM Dual-Channel supports up to 64GB 5333+ MHz, 6 USB 3.2 Gen2 Ports (4x Type A, 1x Type-C Gen2x2, 1x Type-C Header)
- 8 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6/BT 5.2, HDMI 2.0a+DP 1.4 outputs, 2x Intel 2.5 Gb/s NICs
- Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-RL-E599-KR |
| Launch Date | September 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel Z590 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-RL-E599-KR |
| SKU Code | 121-RL-E599-KR |
| GTIN / EAN | 843368070410 |
