EVGA Z690 Classified LGA1700 EATX DDR5 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

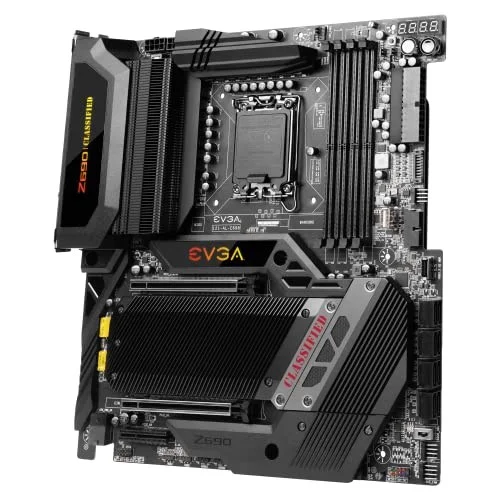

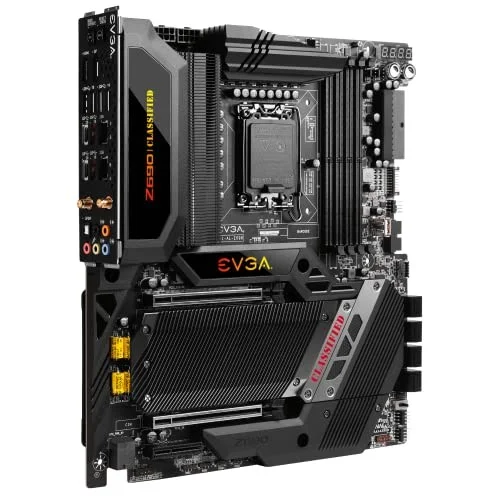

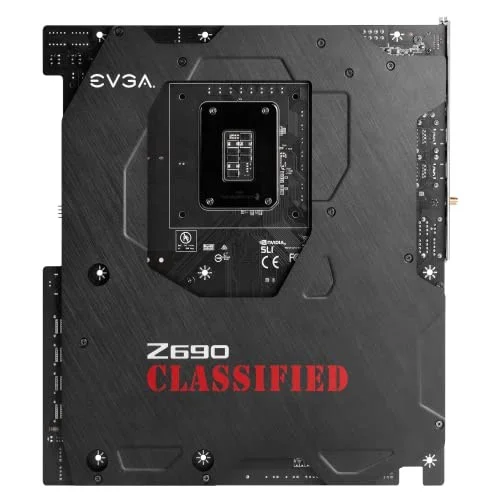

The EVGA Z690 Classified is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6400 MT/s (OC).
- EVGA Z690 CLASSIFIED, 121-AL-E698-KR, LGA 1700, Intel Z690, PCIe Gen5, SATA 6Gb/s, 2.5Gb/s LAN, WiFi6E/BT5.2, USB 3.2 Gen2x2, M.2, EATX, Intel Motherboard Memory Standard: DDR5 6400+ (OC) Number of Memory Slots: 4x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: 2 x PCIe 5.0 x16 (x16/x8, x8) Onboard Video Chipset: Supported only by CPU with integrated graphic Max LAN Speed: Dual 10/100/1000/2500Mbps CPU Type: Core / Pentium / Celeron (12th Gen, LGA1700) Maximum Memory Supported: 128GB
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-AL-E698-KR Z690 classified |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4000 / DDR5-4200 / DDR5-4400 / DDR5-4600 / DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 0 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-AL-E698-KR |
| SKU Code | 121-AL-E698-KR |
| GTIN / EAN | 843368074067 |
