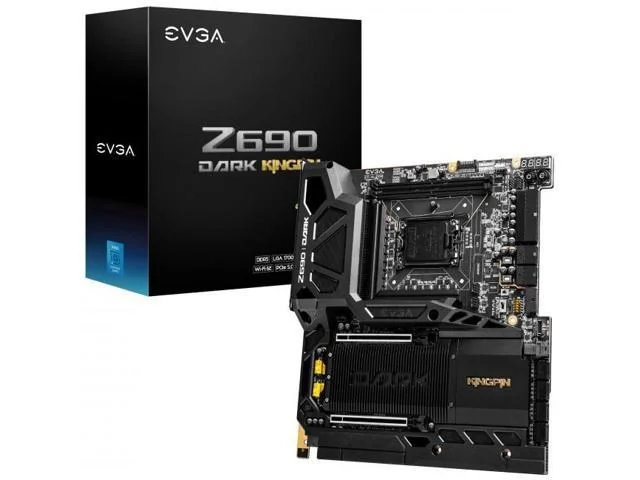

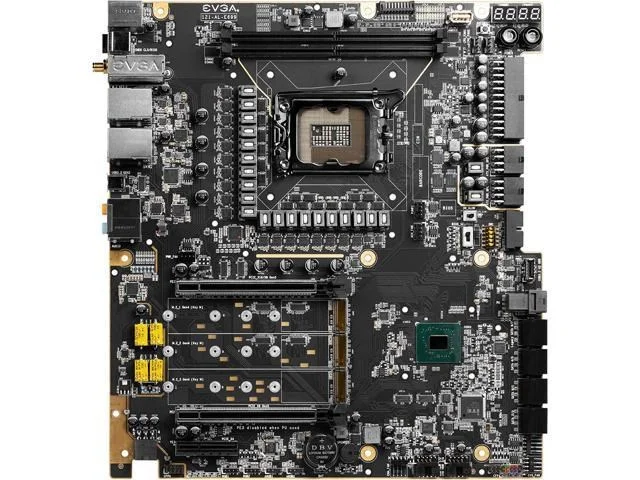

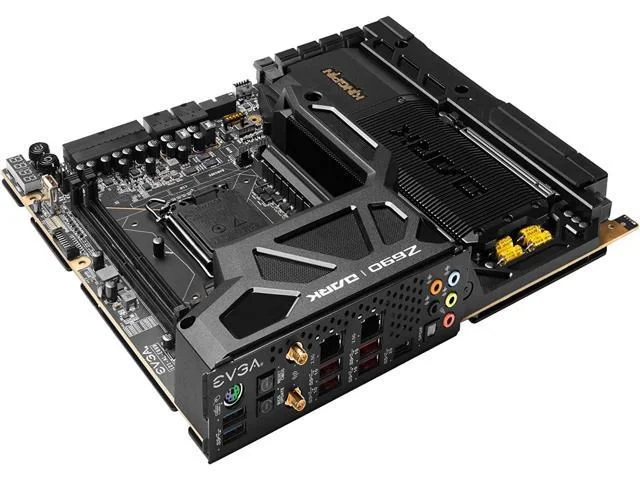

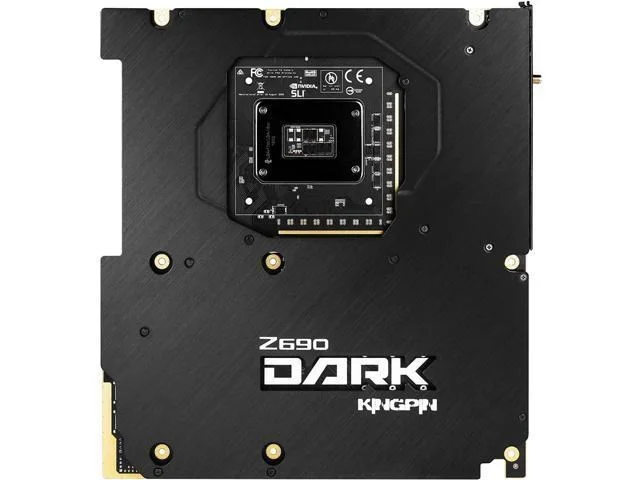

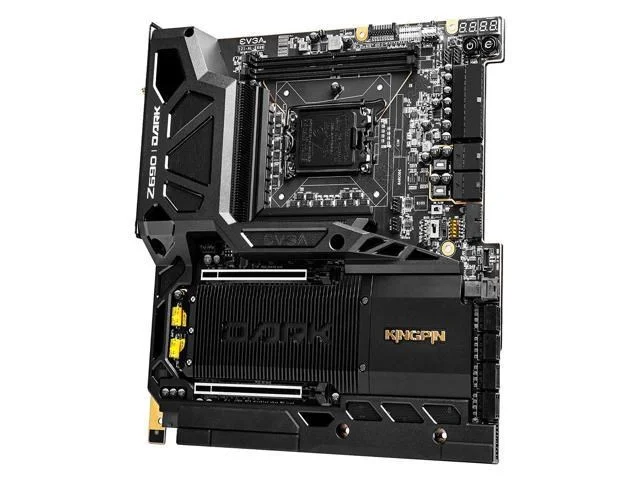

EVGA Z690 DARK K|NGP|N LGA1700 EATX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The EVGA Z690 DARK K|NGP|N is a EATX motherboard for LGA1700. It supports DDR5 memory up to 6600 MT/s (OC).
- Intel Z690 Chipset, Supports 12th Gen Intel Core processors for LGA1700 socket PCIe Gen5, M.2 Gen4, EATX Form Factor, 10 Layer PCB, 21 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover 2 DIMM Dual-Channel supports up to 64GB 6600MHz+(OC) 6 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6E/BT 5.2 Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-AL-E699-KR Z690 DARK K|NGP|N |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z690 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-AL-E699-KR |
| SKU Code | 121-AL-E699-KR |
| GTIN / EAN | 843368074074 |
