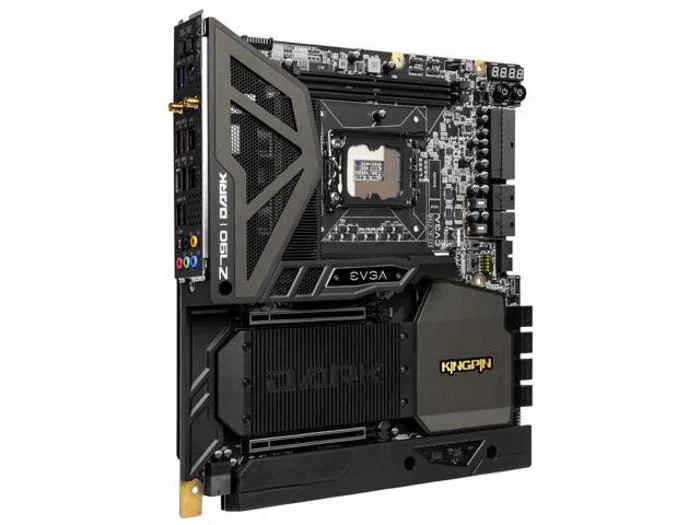

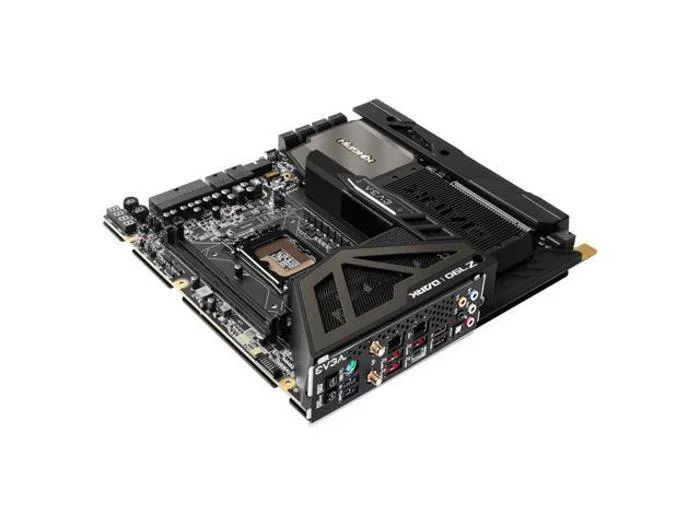

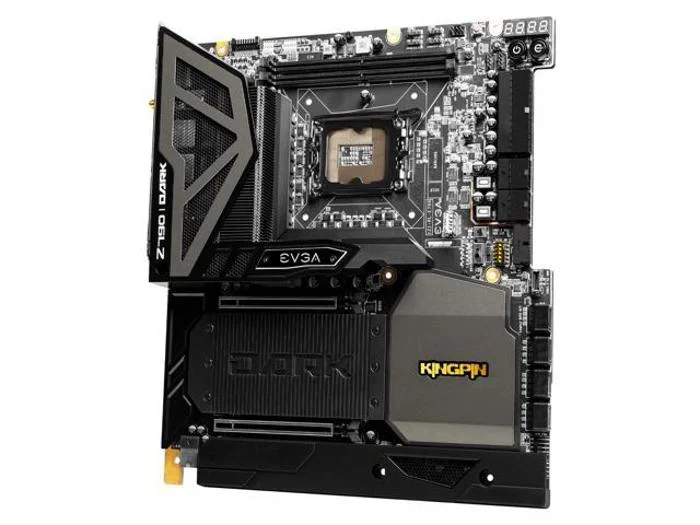

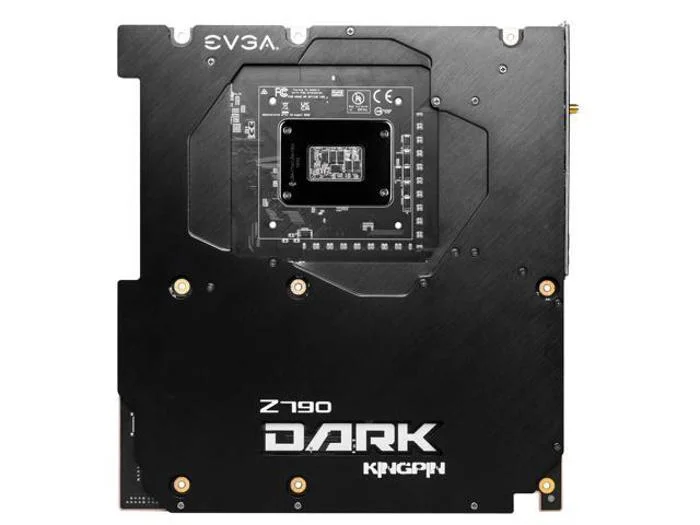

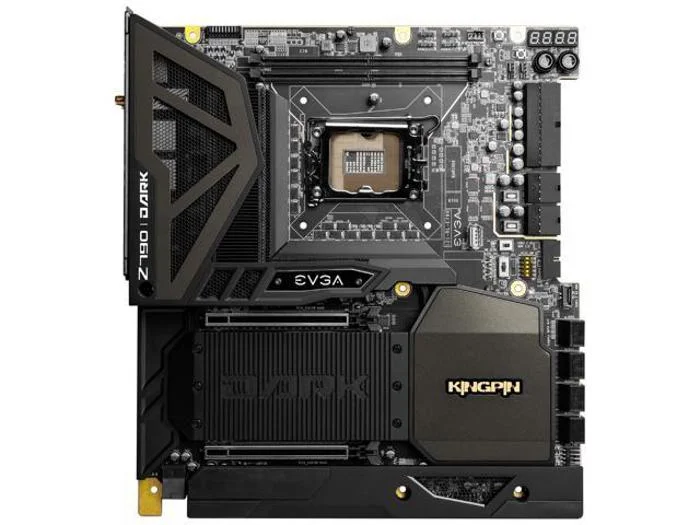

EVGA Z790 DARK K|NGP|N LGA1700 EATX DDR5 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The EVGA Z790 DARK K|NGP|N is a EATX motherboard for LGA1700. It supports DDR5 memory up to 7800 MT/s (OC).
- EVGA Z790 DARK K|NGP|N, 121-RL-E799-KR, LGA 1700, Intel Z790, PCIe Gen5, SATA 6Gb/s, 10Gb/s LAN, WiFi6E/BT5.2, USB 3.2 Gen2x2, M.2, EATX, Intel Motherboard Memory Standard: up to 8000MHz+(OC) Number of Memory Slots: 2x288pin (DDR5) Audio Chipset: Realtek ALC1220 PCI Express 5.0 x16: 2x PCIe 5.0 x16 (x16/x8) Max LAN Speed: 10Gbps + 10/100/1000/2500Mbps CPU Type: Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) Maximum Memory Supported: 64GB Channel Supported: Dual Channel
Specifications
| Manufacturer | EVGA |
|---|---|
| Model Number | 121-RL-E799-KR |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel Z790 |
| Board Size / Form Factor | EATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x4 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 1 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 4 × M.2 |
| M.2 Device Compatibility | 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key, 2230 - E Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | 121-RL-E799-KR |
| SKU Code | 121-RL-E799-KR |
| GTIN / EAN | 843368076931 |
