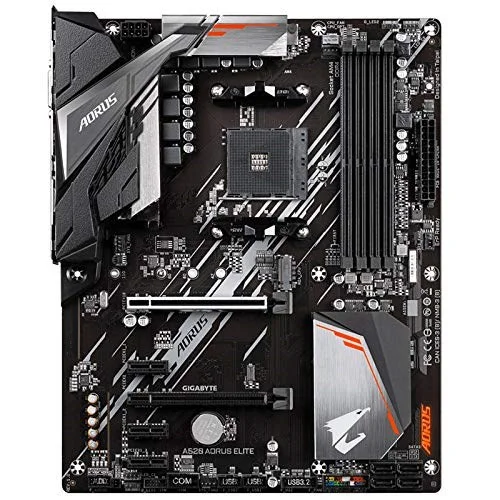

GIGABYTE A520 AORUS ELITE AM4 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE A520 AORUS ELITE is a ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).
- Support For AMD AM4 Ryzen CPU’s
- Supports 4 X DDR4 Dual Channel Non-ECC Unbuffered Dimms
- 5+3 Phases Pure Digital VRM Solution With Low RDS(On) Mosfets
- Ultra-Fast Nvme Pcie 3.0 X4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | A520 AORUS ELITE GA-A520-AORUS-ELITE A520-AORUS-ELITE |
| Launch Date | August 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A520 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4733 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A520 AORUS ELITE |
| SKU Code | A520 AORUS ELITE |
| GTIN / EAN | 889523023617 |
Price History (last 12 months)
Plots available price points within the past 12 months.
