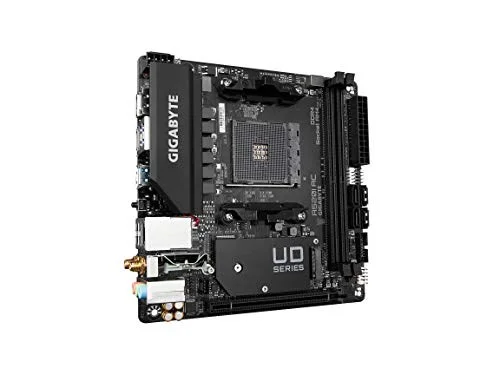

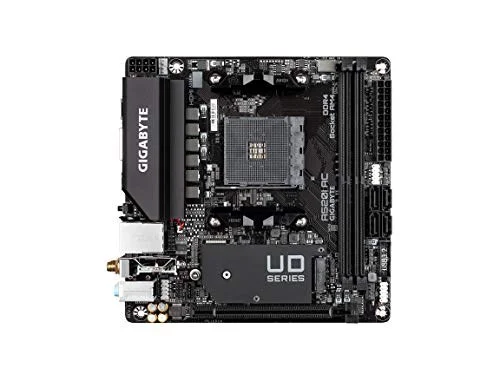

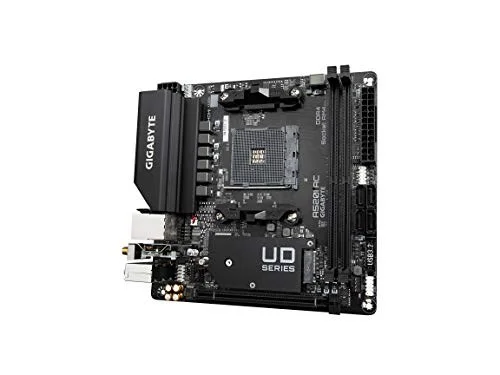

Gigabyte A520I AC AM4 Mini-ITX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte A520I AC is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 5100 MT/s (OC).
- Supports 3Rd Gen AMD Ryzen Processors AMD AM4 Socket
- Dual Channel DDR4, 2 Dimms
- Optimized VRM Heatsink
- Direct 6 Phases Digital PWM With 55A Drmos
- Pcie 3.0 X16 Slot
- 1X Nvme Pcie 3.0 X4 M.2 Slot
- ALC887 Audio Codec
- Blazing Fast 1Gbe LAN
- Intel Dual Band AC Wifi And Bluetooth With Ultra Durable Antenna

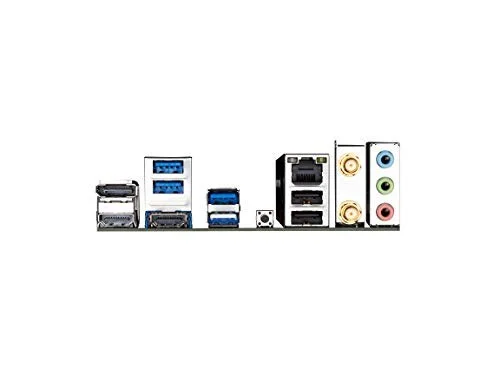

- Rear DP & 2X HDMI Support
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | A520I AC GA-A520I AC |
| Launch Date | August 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A520 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4866 / DDR4-5000 / DDR4-5100 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A520I AC |
| SKU Code | A520I AC |
| GTIN / EAN | 889523023785 |
Price History (last 12 months)
Plots available price points within the past 12 months.
