Gigabyte A520M AORUS ELITE AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

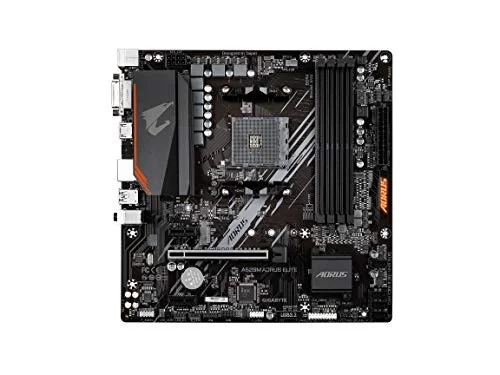

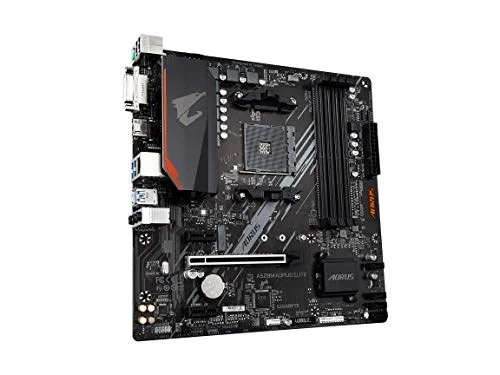

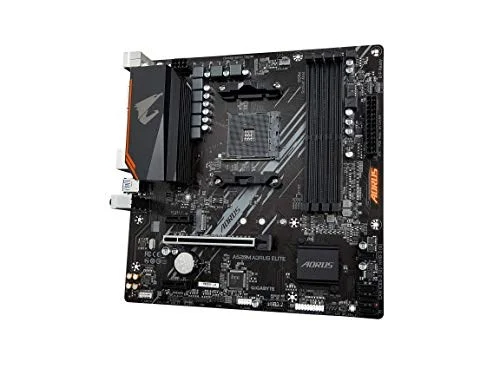

The Gigabyte A520M AORUS ELITE is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).
- Supports 3Rd Gen AMD Ryzen Processors AMD AM4 Socket
- Dual Channel DDR4, 4 Dimms
- 5+3 Phases Digital PWM
- Advanced Thermal Design With Enlarged Surface Heatsinks
- Ultra Durable Pcie 3.0 X16 Slot
- 1X Nvme Pcie 3.0 X4 M.2 Slot
- ALC887 Audio Codec
- Blazing Fast 1Gbe LAN

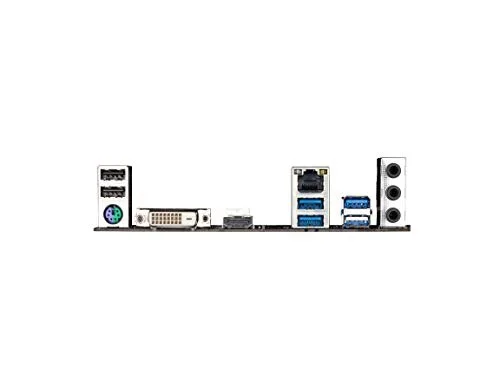

- Rear DVI & HDMI Support
- Q-Flash Plus - Easily Flash Your BIOS
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | A520M AORUS ELITE GA-A520M-AORUS-ELITE |
| Launch Date | August 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel A520 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4733 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | A520M AORUS ELITE |
| SKU Code | A520M AORUS ELITE |
| GTIN / EAN | 889523023631 |
Price History (last 12 months)
Plots available price points within the past 12 months.
