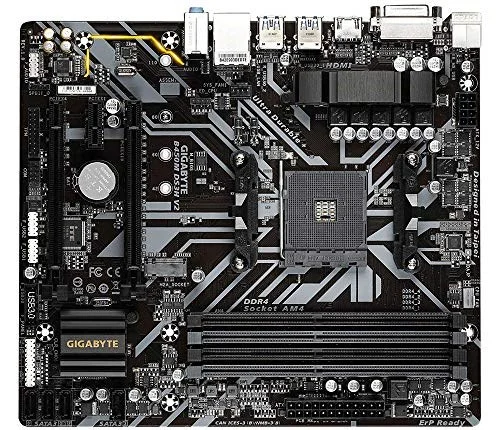

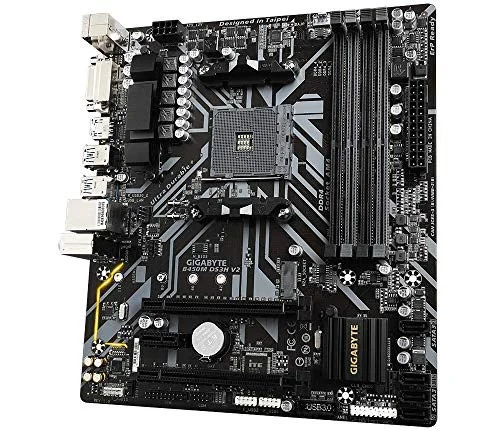

GIGABYTE B450M DS3H V2 AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE B450M DS3H V2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).
- Supports AMD 3Rd Gen Ryzen/ 2Nd Gen Ryzen/ 1St Gen Ryzen/ 2Nd Gen Ryzen With Radeon Vega Graphics/ 1St Gen Ryzen With Radeon Vega Graphics/ Athlon With Radeon Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- Feature Digital VRM Solution With Low RDS(On) Mosfets

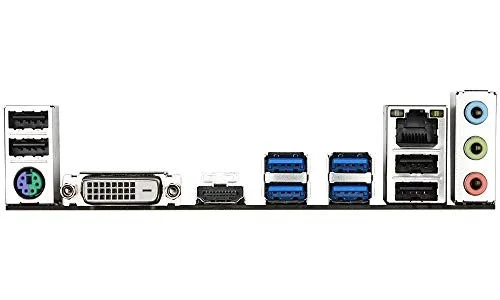

- HDMI, DVI-D Ports For Multiple Display
- Ultra-Fast Pcie Gen3 X4 M.2 With Pcie Nvme & SATA Mode Support
- High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting
- GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
- RGB Fusion Supports RGB LED Strips In 7-Colors
- Smart Fan 5 Features 5 Temperature Sensors And 2 Hybrid Fan Headers With FAN STOP
- APP Center Including Easytune And Cloud Station Utilities
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B450M DS3H V2 |
| Launch Date | September 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M DS3H V2 |
| SKU Code | B450M DS3H V2 |
| GTIN / EAN | 889523024393 |
Price History (last 12 months)
Plots available price points within the past 12 months.
