Gigabyte B450M S2H AM4 Micro-ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

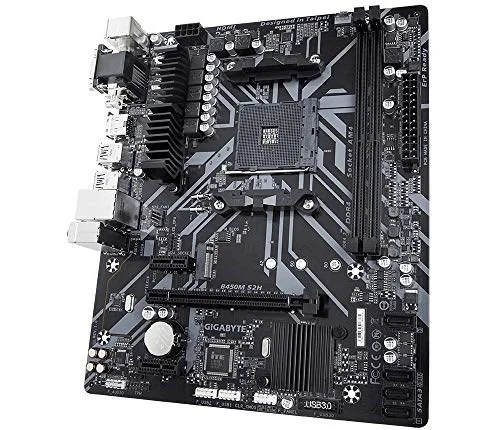

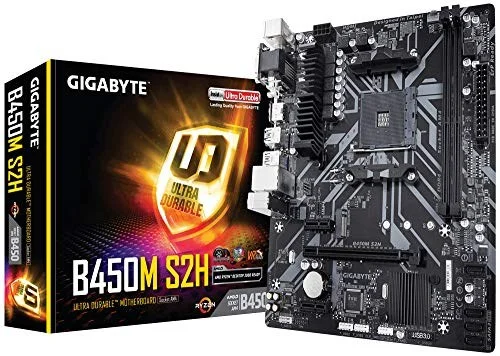

The Gigabyte B450M S2H is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3600 MT/s (OC).
- Supports AMD Ryzen 2Nd Generation/Ryzen With Radeon Vega Graphics/Athlon With Radeon Vega Graphics/Ryzen 1St Generation Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 Dimms

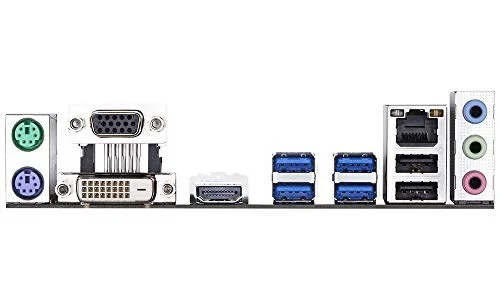

- HDMI, DVI-D, D-Sub Ports For Multiple Display
- Ultra-Fast Pcie Gen3 X4 M.2 With Pcie Nvme And SATA Mode Support
- GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B450M S2H |
| Launch Date | January 2019 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B450 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2933 / DDR4-3466 / DDR4-3600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B450M S2H |
| SKU Code | B450M S2H |
| GTIN / EAN | 4719331804961 |
