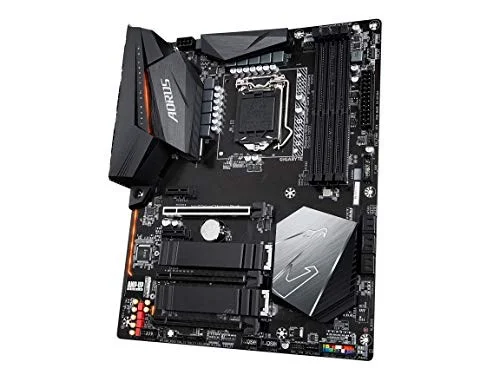

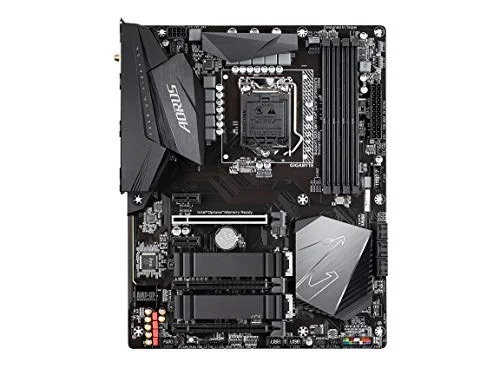

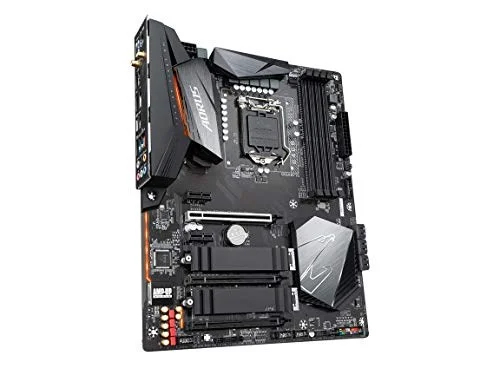

Gigabyte B460 AORUS PRO AC LGA1200 ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte B460 AORUS PRO AC is a ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core Processors
- Direct 8 Phases Digital VRM Solution
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- Advanced Thermal Design With Enlarged Heatsink
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP
- Dual Ultra-Fast Nvme Pcie 3.0 X4 M.2 With Thermal Guards
- Intel 802.11Ac Wave2 2T2R WIFI & BT 5
- Blazing Fast Intel 2.5 Gbe LAN With Cfosspeed
- Intel USB 3.2 Gen2 Type-C Support
- ALC 1220 120Db SNR HD Audio With WIMA & Nichicon MW Audio Capacitors
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B460 AORUS PRO AC |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key, 2230 - E Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

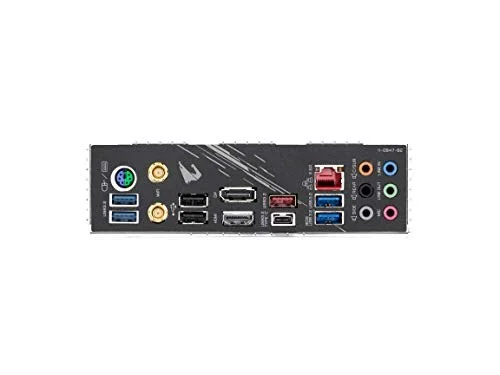

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B460 AORUS PRO AC |
| SKU Code | B460 AORUS PRO AC |
| GTIN / EAN | 889523022085 |
