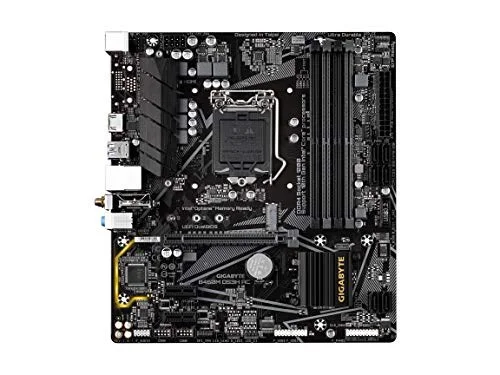

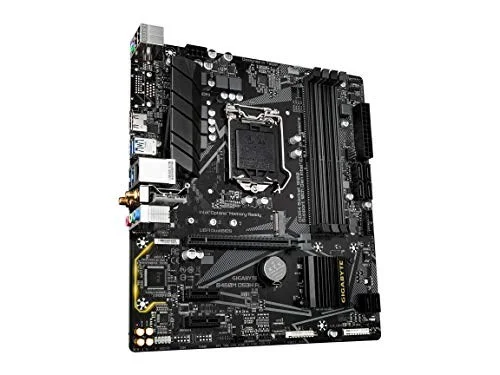

Gigabyte B460M DS3H AC LGA1200 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte B460M DS3H AC is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 2933 MT/s (OC).
- Supports 10Th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4
- High Quality Audio Capacitors And Audio Noise Guard With LED Trace Path Lighting
- Ultra-Fast M. 2 With Pcie Gen3 X4 & SATA Interface
- Intel Dual Band 802. 11Ac WIFI & BT 4. 2
- RGB FUSION Supports RGB LED Strips In 7 Colors
- GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management
- Smart Fan 5 Features Multiple Temperature Sensors And Hybrid Fan Headers With FAN STOP
- Anti-Sulfur Resistors Design
- GIGABYTE UEFI Dualbios
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B460M DS3H AC |
| Launch Date | May 2020 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B460 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B460M DS3H AC |
| SKU Code | B460M DS3H AC |
| GTIN / EAN | 889523022047 |
