Description

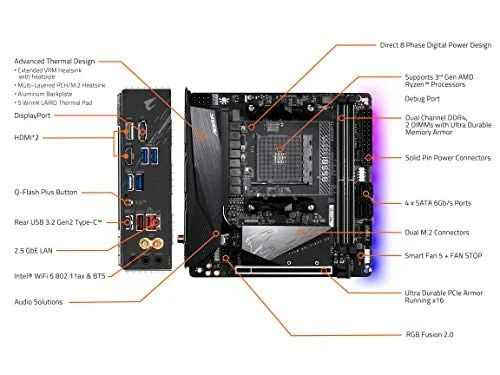

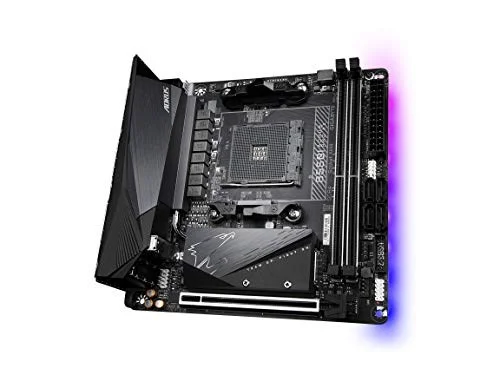

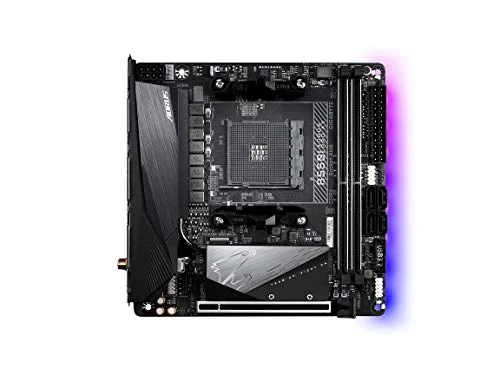

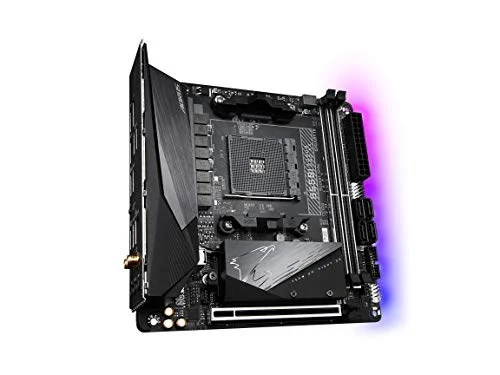

The Gigabyte B550I AORUS PRO AX is a Mini-ITX motherboard for AM4. It supports DDR4 memory up to 5000 MT/s (OC).
- Supports 3Rd Gen AMD Ryzen Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 Dimms
- Direct 8 Phases Digital Power With 90A Smart Power Stage
- Advanced Thermal Design With Extended & Multi-Layered Heatsink And Thermal Baseplate
- Ultra Durable Pcie 4. 0 Ready X16 Slot
- Dual Ultra-Fast Nvme Pcie 4. 0/3. 0 X4 M. 2 With Thermal Guard
- Onboard Intel Wifi 6 802. 11Ax 2T2R & BT5 With AORUS Antenna
- AMP-UP Audio With ALC1220-VB And Nichicon Audio Capacitors For Rear 120Db SNR
- Blazing Fast 2. 5Gbe LAN With Bandwidth Management

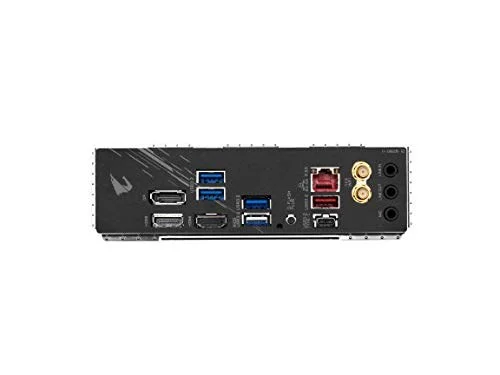

- USB 3. 2 Gen2 Type-C & Displayport + Dual HDMI Support
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B550I AORUS PRO AX |
| Launch Date | June 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4866 / DDR4-5000 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B550I AORUS PRO AX |
| SKU Code | B550I AORUS PRO AX |
| GTIN / EAN | 889523022986 |
Price History (last 12 months)
Plots available price points within the past 12 months.
