Gigabyte B550M AORUS PRO AM4 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
$29.99 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

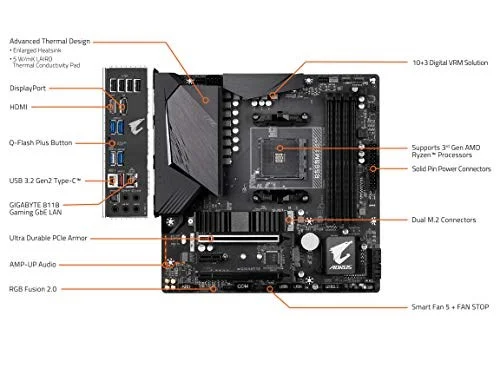

The Gigabyte B550M AORUS PRO is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4733 MT/s (OC).
- Supports 3Rd Gen AMD Ryzen Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 Dimms
- Digital 10+3 VRM Solution
- Advanced Thermal Design With Enlarged VRM Heatsinks
- Ultra Durable Pcie 4.0 Ready X16 Slot
- Dual Ultra-Fast Nvme Pcie 4.0/3.0 X4 M.2 With Thermal Guard
- AMP-UP Audio With ALC1200 And Premium Capacitor
- GIGABYTE Exclusive 8118 Gaming Gbe LAN
- Onboard Displayport & HDMI
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B550M AORUS PRO |
| Launch Date | June 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 / DDR4-4733 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B550M AORUS PRO |
| SKU Code | B550M AORUS PRO |
| GTIN / EAN | 889523023143 |
