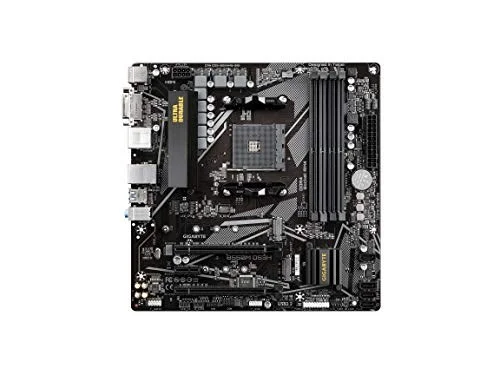

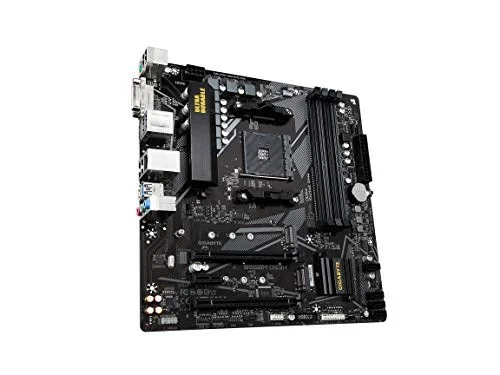

Gigabyte B550M DS3H AM4 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte B550M DS3H is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 4600 MT/s (OC).

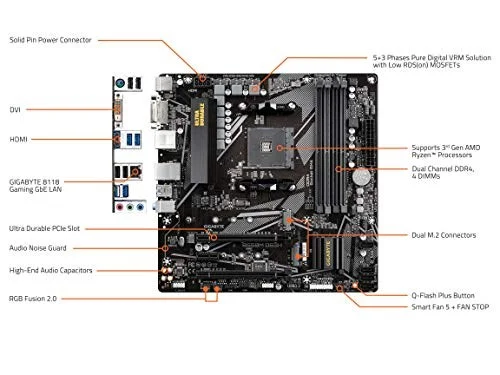

- Supports 3Rd Gen AMD Ryzen Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 Dimms
- 5+3 Phases Pure Digital VRM Solution With Low RDS(On) Mosfets
- Ultra Durable Pcie 4. 0 Ready X16 Slot
- Dual Ultra-Fast Nvme Pcie 4. 0/3. 0 M. 2 Connectors
- High Quality Audio Capacitors And Audio Noise Guard For Ultimate Audio Quality
- GIGABYTE Exclusive 8118 Gaming Gbe LAN With Bandwidth Management

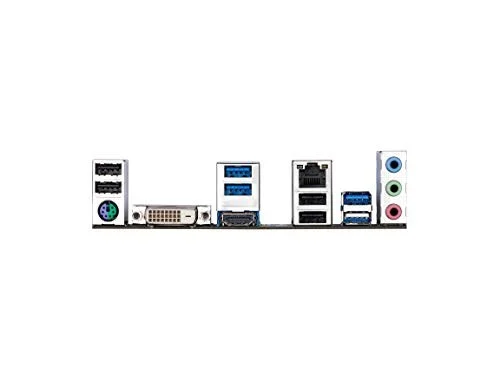

- Rear HDMI & DVI Support
- RGB FUSION 2. 0 With Multi-Zone Addressable LED Light Show Design
- Supports Addressable LED & RGB LED Strips
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B550M DS3H |
| Launch Date | June 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B550 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 / DDR4-3333 / DDR4-3600 / DDR4-4000 / DDR4-4400 / DDR4-4600 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B550M DS3H |
| SKU Code | B550M DS3H |
| GTIN / EAN | 889523022917 |
