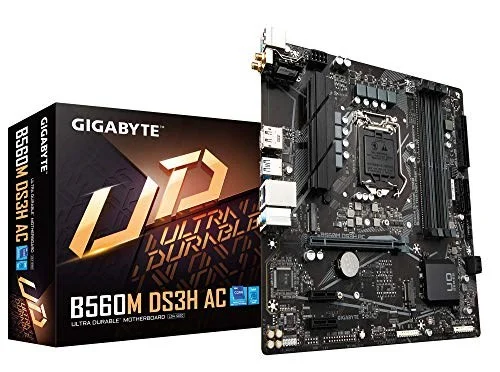

GIGABYTE B560M DS3H AC LGA1200 Micro-ATX DDR4 128 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

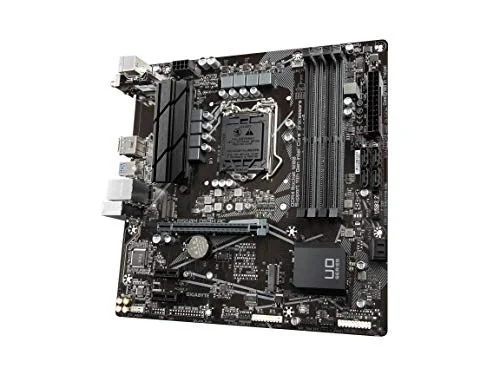

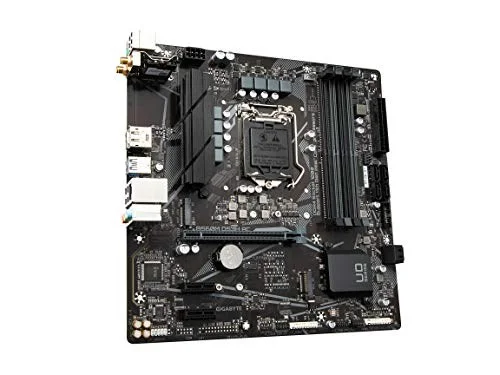

The GIGABYTE B560M DS3H AC is a Micro-ATX motherboard for LGA1200. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
- Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B560M DS3H AC |
| Launch Date | March 2021 |
| CPU Socket | LGA1200 |
| Chipset Model | Intel B560 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 - M Key (Intel 11th Gen only) |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B560M DS3H AC |
| SKU Code | B560M DS3H AC |
| GTIN / EAN | 889523026991 |
