Gigabyte B650 AORUS PRO AX AM5 ATX DDR5 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£45.55 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

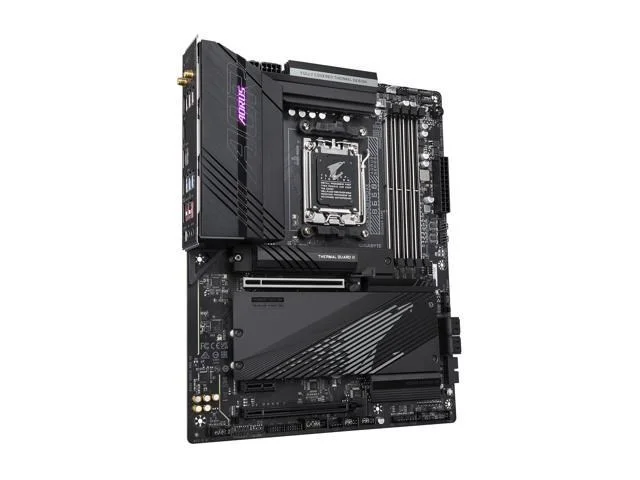

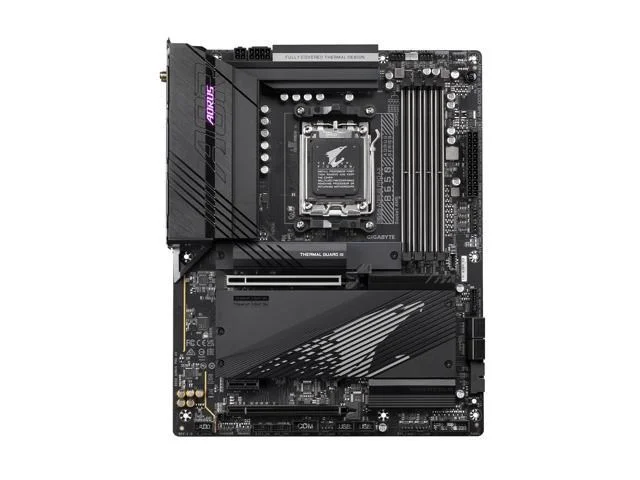

The Gigabyte B650 AORUS PRO AX is a ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

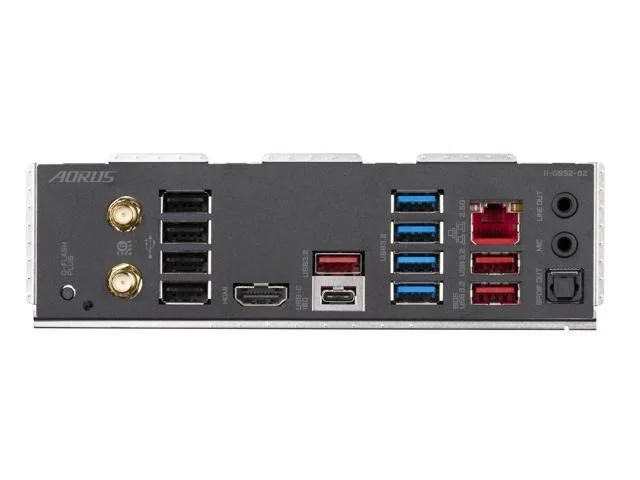

- AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD B650Memory4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6600MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI port, supporting a maximum resolution of 4096x2160@60 HzPCI SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)StorageTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s portsCPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)Networking1 x 2.5Gb Ethernet WIFI 6EBluetoothAudioRealtek ALC1220-VB CODECConnectivity1 x Q-Flash Plus button4 x USB 2.0/1.1 ports1 x HDMI 2.0 port3 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C port, with USB 3.2 Gen 1 support4 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x audio jacks 1 x optical S/PDIF Out connectorInternal Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers2 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumperForm FactorATX Form Factor; 30.5cm x 24.4cm
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B650 AORUS PRO AX B650 AORUS PRO AX (rev.1.x) |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 25110 - M Key, 2280 / 25110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |
| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650 AORUS PRO AX |
| SKU Code | B650 AORUS PRO AX |
| GTIN / EAN | 889523033913 |
