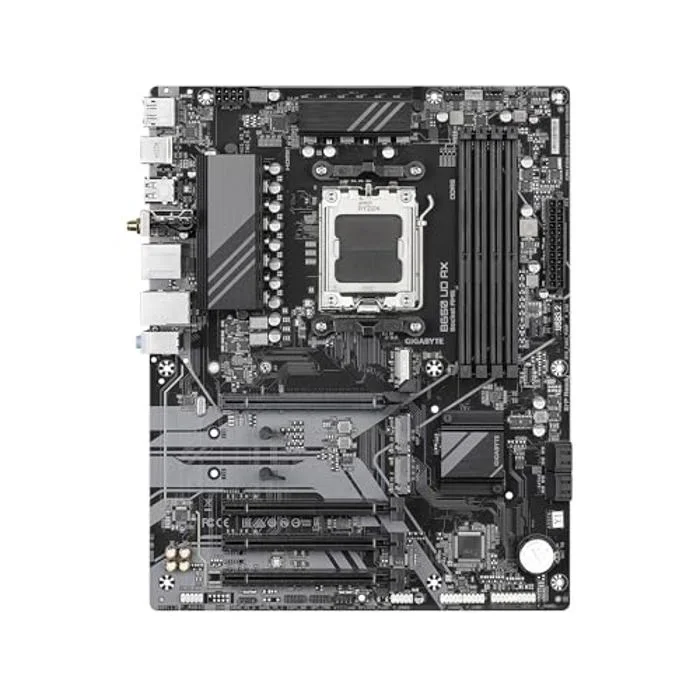

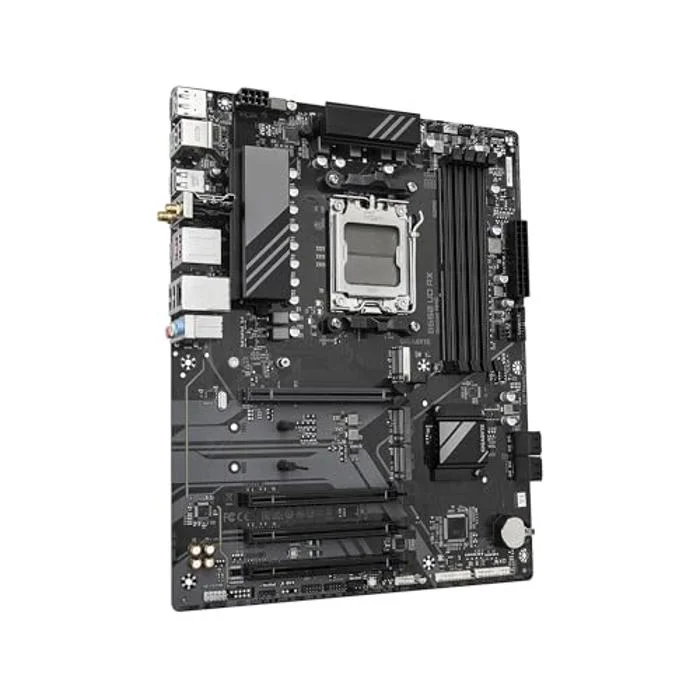

GIGABYTE B650 UD AX AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.

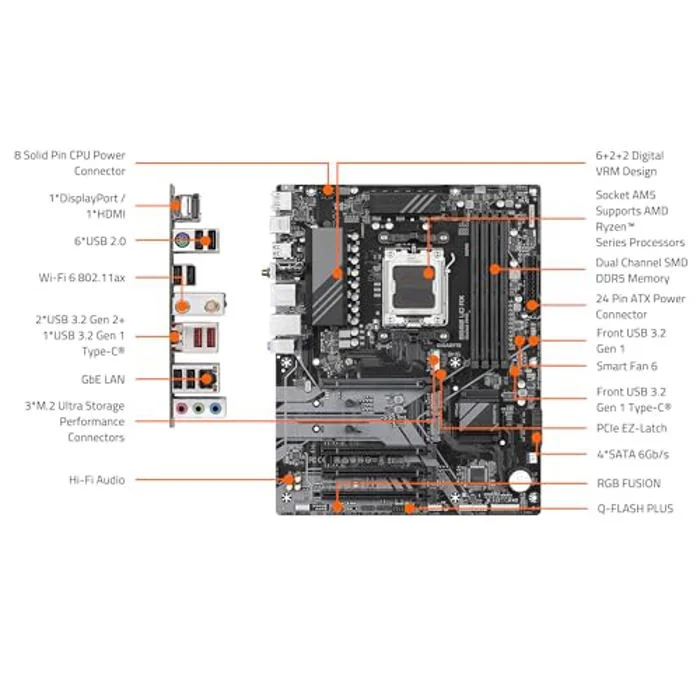

Description
The GIGABYTE B650 UD AX is a ATX motherboard for AM5. It supports DDR5 memory up to 7600 MT/s (OC).
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Sturdy Power Design: 6+2+2 Phases Digital VRM Solution
- Stable Connectivity: 2*PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
- Fast Networking: GbE LAN, Wi-Fi 6
- Fine Tuning Features: Smart Fan 6, Q-Flash
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | B650 UD AX (rev. 1.0) B650 UD AX |
| Launch Date | July 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 0 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |

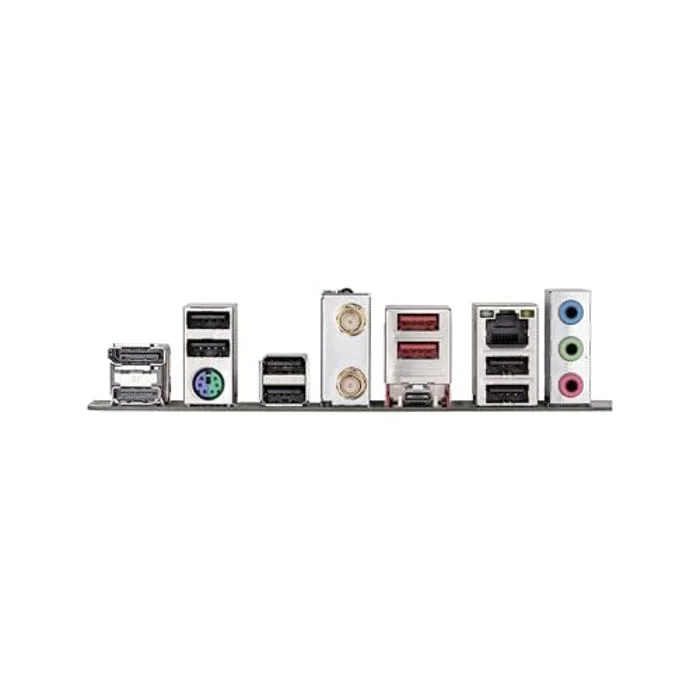

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650 UD AX (rev. 1.0) |
| SKU Code | B650 UD AX (rev. 1.0) |
| GTIN / EAN | 889523044278 |
