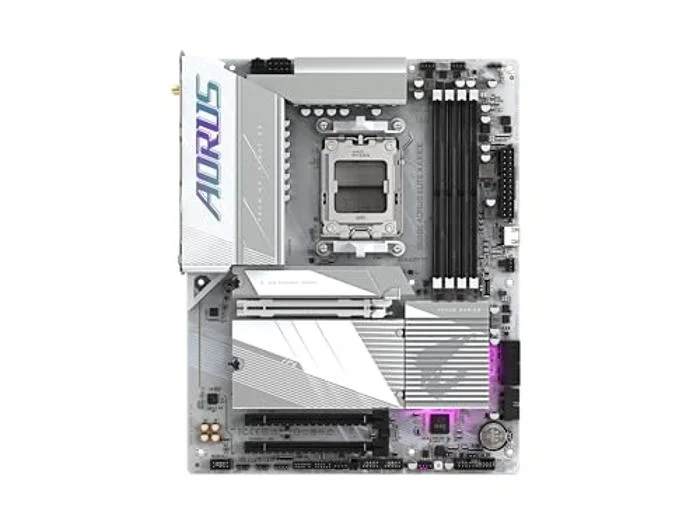

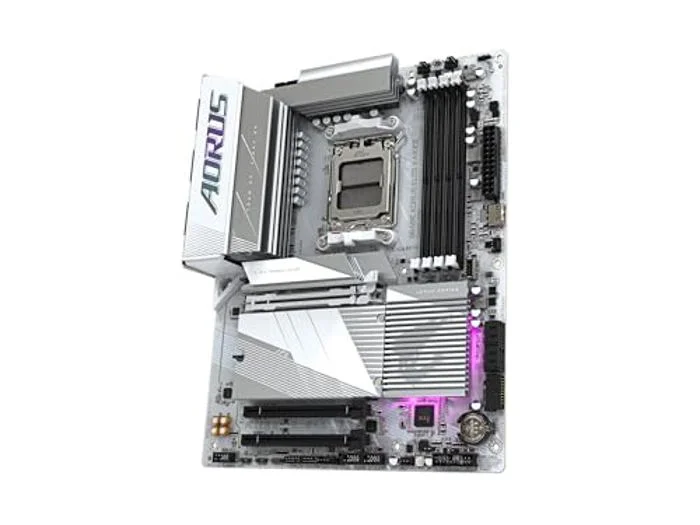

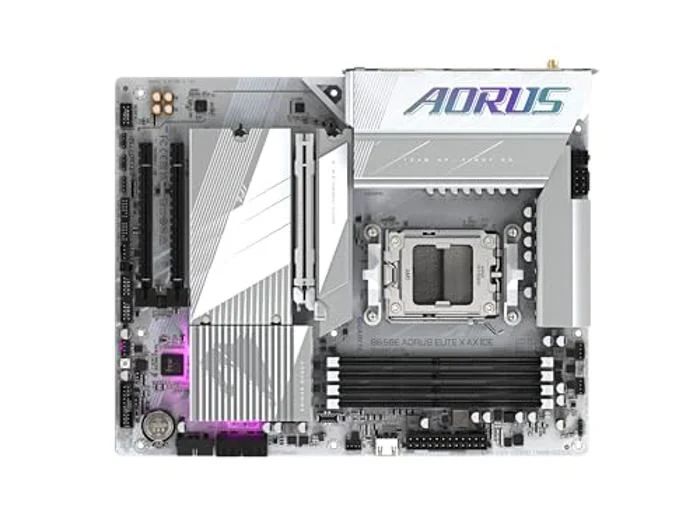

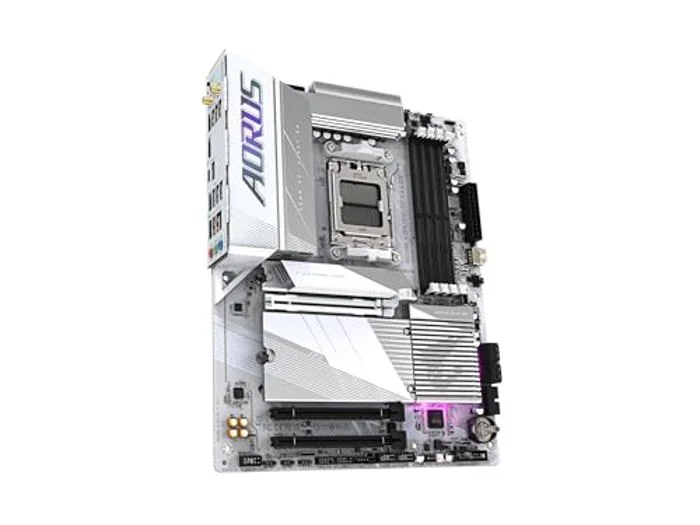

GIGABYTE B650E AORUS Elite X AX ICE AM5 ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE B650E AORUS Elite X AX ICE is a ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).
- AMD AM5 Socket: Supports AMD Ryzen 8000 and 7000 Series Processors
- DDR5 Compatible: 4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Commanding Power Design: Twin 12+2+2 Phases Digital VRM Solution, 6-Layer 2X Copper PCB
- Cutting-Edge Thermal Design: M.2 Thermal Guard XL, VRM Thermal Armor
- Next Gen Connectivity: PCIe 5.0, 3x M.2, Dual USB-C, BT 5.3
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | B650E AORUS ELITE X AX ICE |
| Launch Date | January 2024 |
| CPU Socket | AM5 |
| Chipset Model | Intel B650E |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6666 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

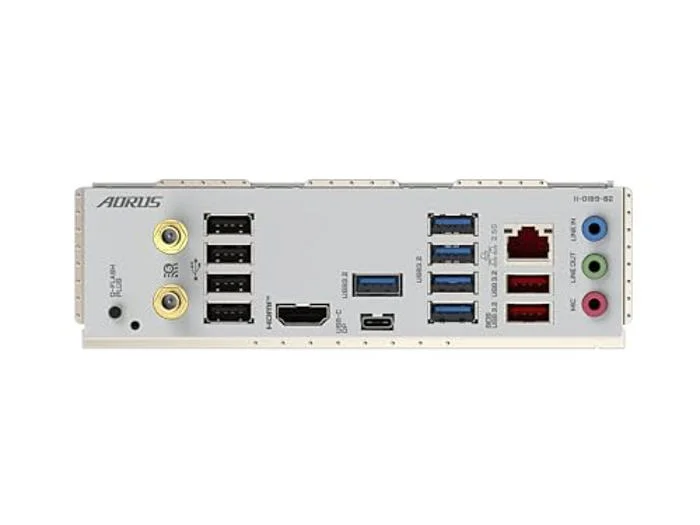

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650E AORUS ELITE X AX ICE |
| SKU Code | B650E AORUS ELITE X AX ICE |
| GTIN / EAN | 889523041895 |
