Gigabyte B650M AORUS ELITE AX

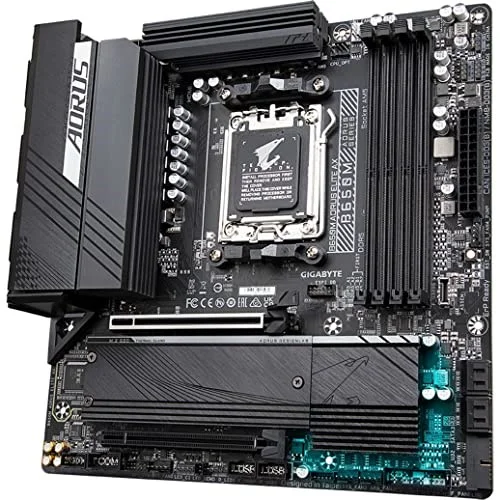

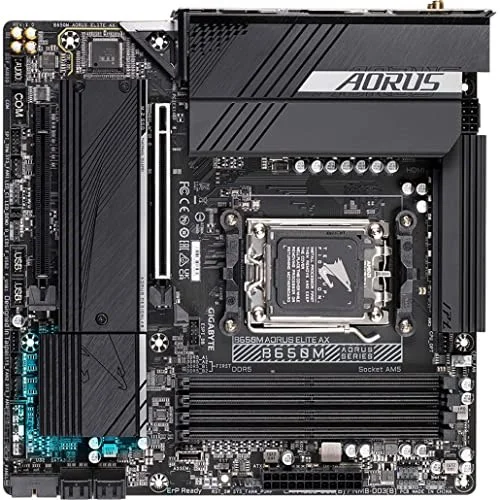

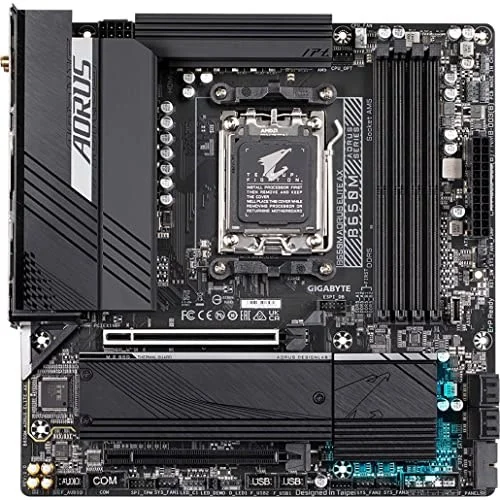

The Gigabyte B650M AORUS ELITE AX is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6600 MT/s (OC).

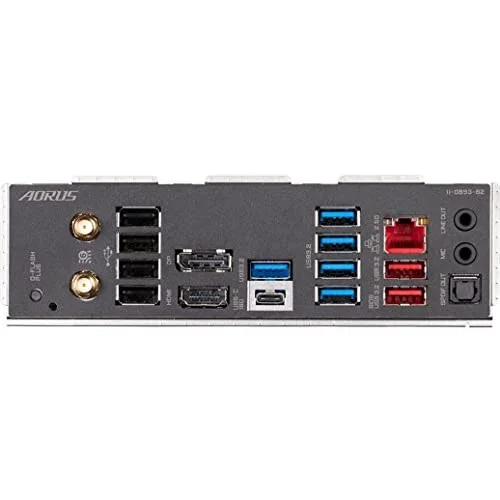

• CPUAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors ChipsetAMD B650Memory4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6600MHz (OC) Supports AMD EXTended Profiles for Overclocking (EXPO)Onboard Graphics Outputs1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz1 x DisplayPortPCI SlotsCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsCPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:4 x SATA 6Gb/s connectorsNetworking1 x 2.5Gb Ethernet WIFI 6EBluetoothAudioRealtek CODECConnectivity1 x Q-Flash Plus button1 x DisplayPort1 x HDMI 2.0 port1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksInternal Ports1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumperForm FactorMicro ATX Form Factor; 24.4cm x 24.4cm
