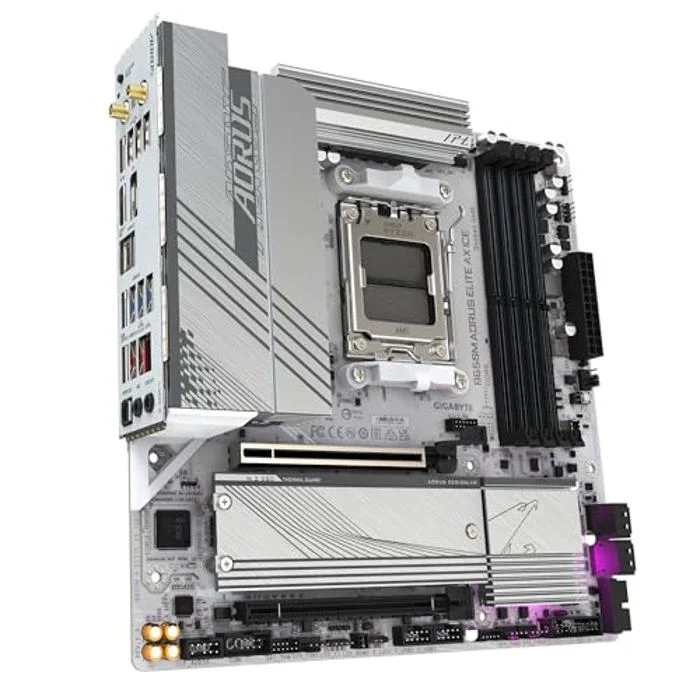

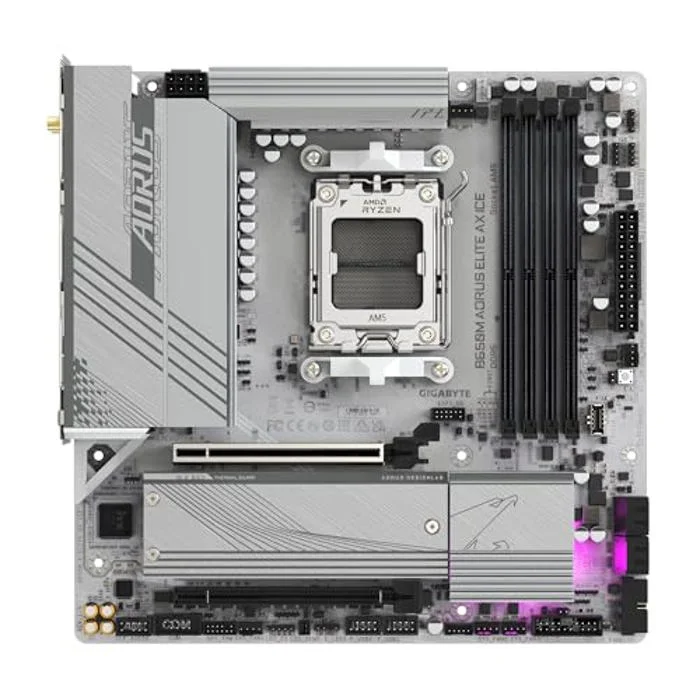

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX DDR5 192 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte B650M AORUS ELITE AX ICE is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 8000 MT/s (OC).
- GIGABYTE B650M AORUS ELITE AX ICE AM5 LGA 1718 AMD B650 M-ATX Motherboard, DDR5, 2x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Number of Memory Slots: 4x288pin (DDR5) Memory Standard: DDR5 5200 Audio Channels: 7.1 Channels Max LAN Speed: 2.5Gbps Maximum Memory Supported: 192GB Channel Supported: Dual Channel CPU Type: Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series ECC Supported: Non-ECC
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B650M AORUS ELITE AX ICE |
| Launch Date | |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4400 / DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6666 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7600 / DDR5-7800 / DDR5-8000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

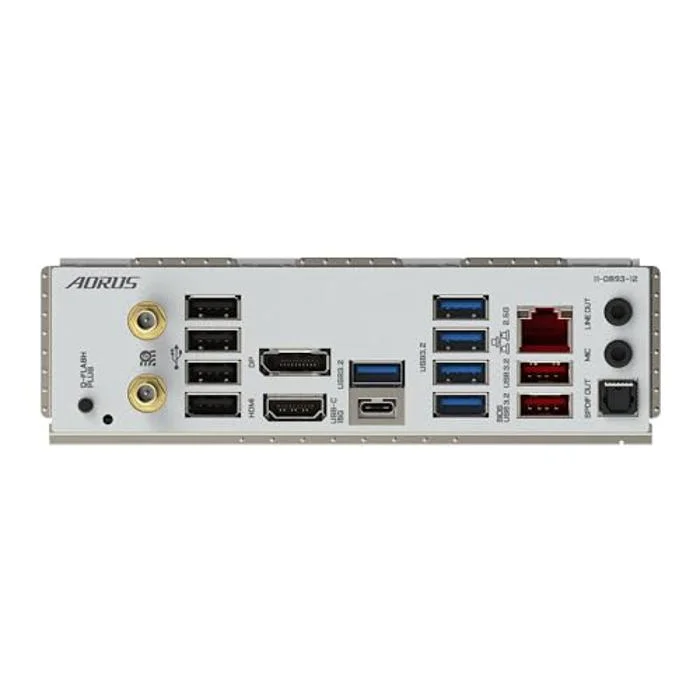

| Rear-Panel USB | USB 3.2 Gen2x2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 1 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650M AORUS ELITE AX ICE |
| SKU Code | B650M AORUS ELITE AX ICE |
| GTIN / EAN | 4719331859336 |
