Description

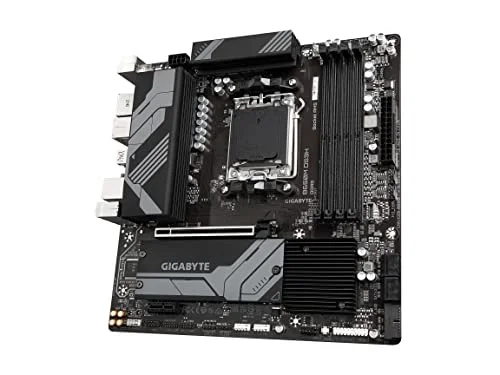

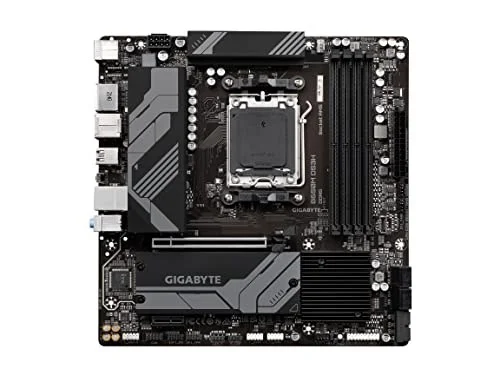

The GIGABYTE B650M DS3H is a Micro-ATX motherboard for AM5. It supports DDR5 memory up to 6400 MT/s (OC).
- 5-Year Warranty
- AMD AM5 Socket: Supports AMD Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Sturdy Power Design: Direct 6+2+1 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Next Gen Connectivity: PCIe 5.0, NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Fast Networking: 2.5GbE LAN
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B650M DS3H B650M DS3H (rev. 1.0) |
| Launch Date | October 2022 |
| CPU Socket | AM5 |
| Chipset Model | Intel B650 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5200 / DDR5-5600 / DDR5-6000 / DDR5-6200 / DDR5-6400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 / 25110 - M Key, 2280 / 25110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B650M DS3H |
| SKU Code | B650M DS3H |
| GTIN / EAN | 889523034231 |
