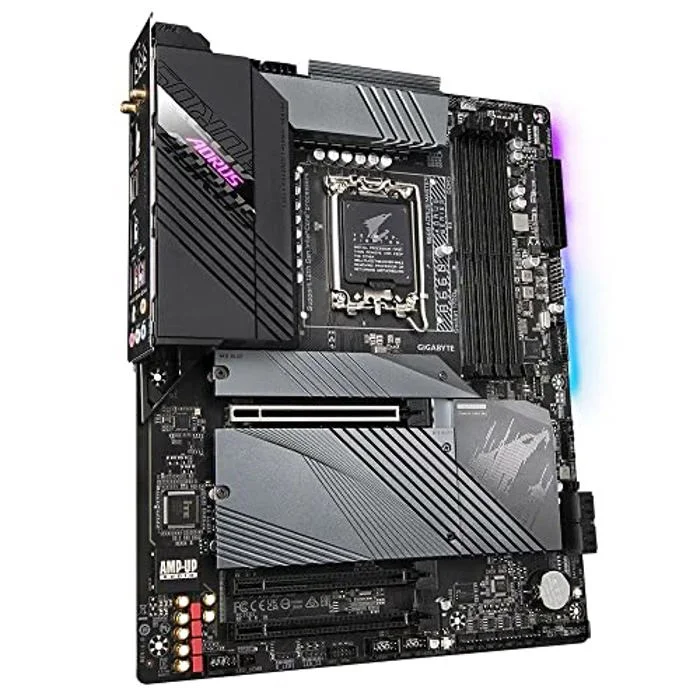

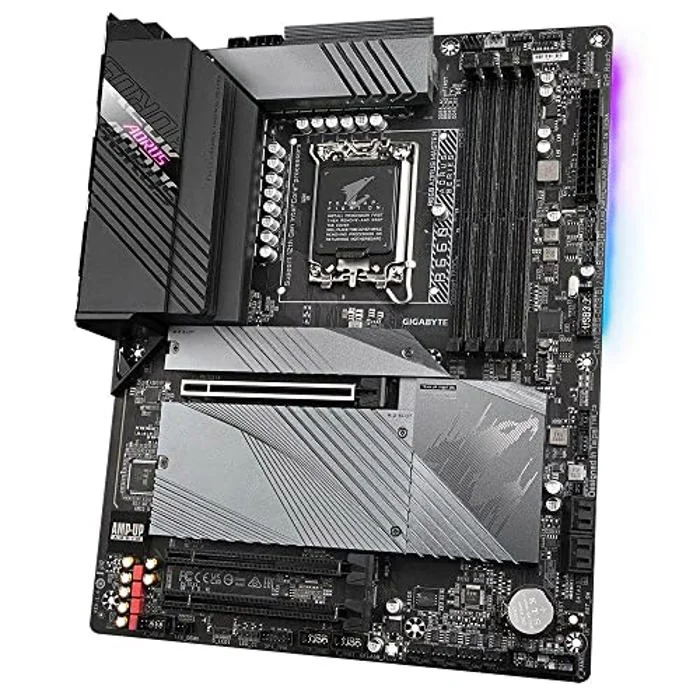

Gigabyte B660 AORUS MASTER LGA1700 ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte B660 AORUS MASTER is a ATX motherboard for LGA1700. It supports DDR5 memory up to 6000 MT/s (OC).
- Supports 12th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
- 16 +1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- DDR5 XTREME MEMORY Design with Shielded Memory Routing
- Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
- WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
- Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
- Blazing Fast Intel 2.5GbE LAN with Bandwidth Management
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
- SuperSpeed USB 3.2 Gen 2x2 Type-C delivers up to 20Gb/s transfer speeds
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B660 AORUS MASTER |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-5000 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660 AORUS MASTER |
| SKU Code | B660 AORUS MASTER |
| GTIN / EAN | 4719331830960 |
