GIGABYTE B660 AORUS Master DDR4 LGA1700 ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
Free | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

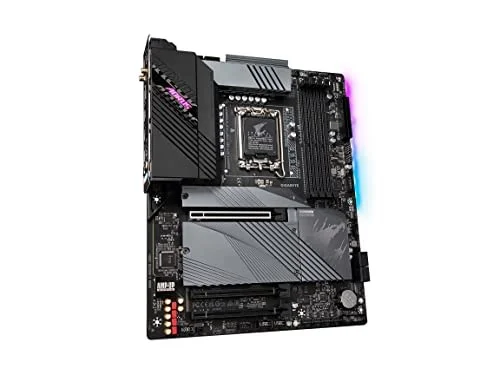

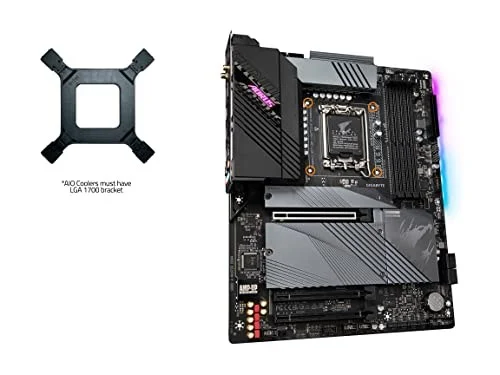

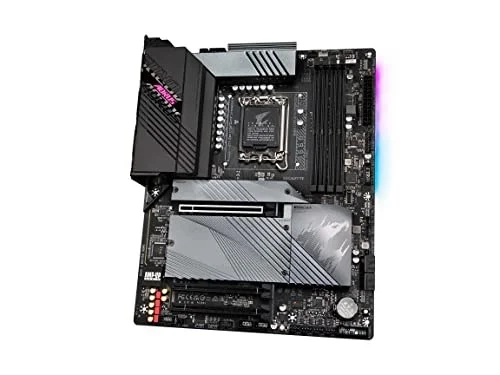

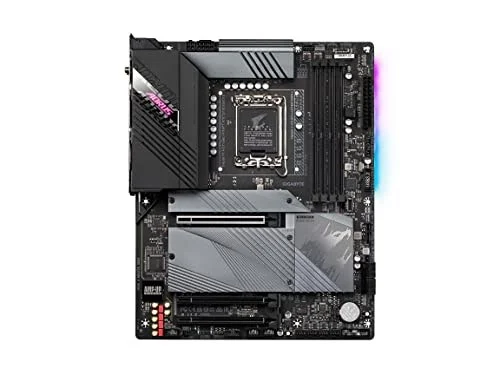

The GIGABYTE B660 AORUS Master DDR4 is a ATX motherboard for LGA1700. It supports DDR4 memory up to 5333 MT/s (OC).
- Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
- DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Commanding Power Design: 16+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
- Cutting-Edge Thermal Design: Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Shielded Memory Routing, Enlarged Thermal Guards
- Next Gen Connectivity: PCI 4.0, Triple NVMe PCIe 4.0 x4 M.2, USB 3.2 Gen 2x2 Type-C
- Fast Networking: Intel 2.5GbE LAN, WIFI 6 802.11ax, BT5
- Dynamic Audio: AMP-UP Audio with ALC1220 and WIMA Audio Capacitors
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B660 AORUS MASTER DDR4 B660 A MASTER DDR4 |
| Launch Date | January 2022 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 / DDR4-4500 / DDR4-4600 / DDR4-4700 / DDR4-4800 / DDR4-4933 / DDR4-5000 / DDR4-5133 / DDR4-5333 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 3 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | 2.5GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660 AORUS MASTER DDR4 |
| SKU Code | B660 AORUS MASTER DDR4 |
| GTIN / EAN | 889523030547 |
