Gigabyte B660M GAMING X AX DDR4 LGA1700 Micro-ATX DDR4 128 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
|
£47.31 | - |
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

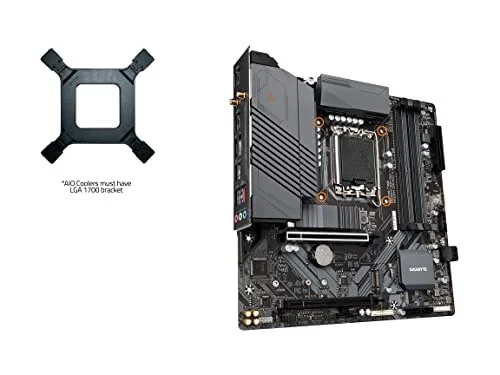

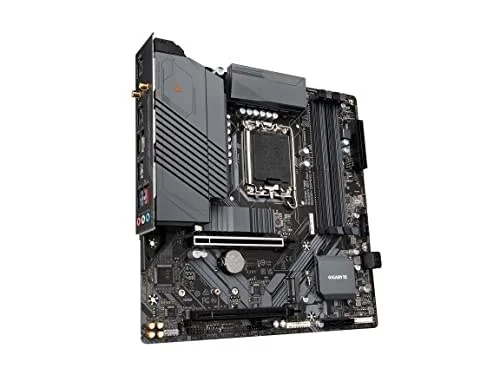

The Gigabyte B660M GAMING X AX DDR4 is a Micro-ATX motherboard for LGA1700. It supports DDR4 memory up to 4400 MT/s (OC).
- Intel LGA 1700 Socket: Supports 12Th Gen Intel Core Series Processors
- DDR4 Compatible: Dual Channel DDR4, 4 Dimms
- Sturdy Power Design: 8+1+1 Hybrid Digital VRM Design, Premium Choke And Capacitors, 8-Pin Solid Pin CPU Power Connector
- Comprehensive Thermal Design: Fully Covered Thermal Design, High Coverage VRM MOSFET Heatsinks, M.2 Thermal Guard
- Next Gen Connectivity: Pcie 4.0, Dual NVME Pcie 4.0 X4 M.2, USB 3.2 Gen2 Type-C, HDMI 2.0,
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B660M GAMING X AX DDR4 B660M GAMING X AX DDR4 (rev. 1.1) |
| Launch Date | |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B660 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 128 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 / DDR4-4133 / DDR4-4266 / DDR4-4300 / DDR4-4400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key, 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6 (802.11ax) |
| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B660M GAMING X AX DDR4 |
| SKU Code | B660M GAMING X AX DDR4 |
| GTIN / EAN | 889523031452 |
