Gigabyte B760M AORUS ELITE X AX LGA1700 Micro-ATX DDR5 192 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

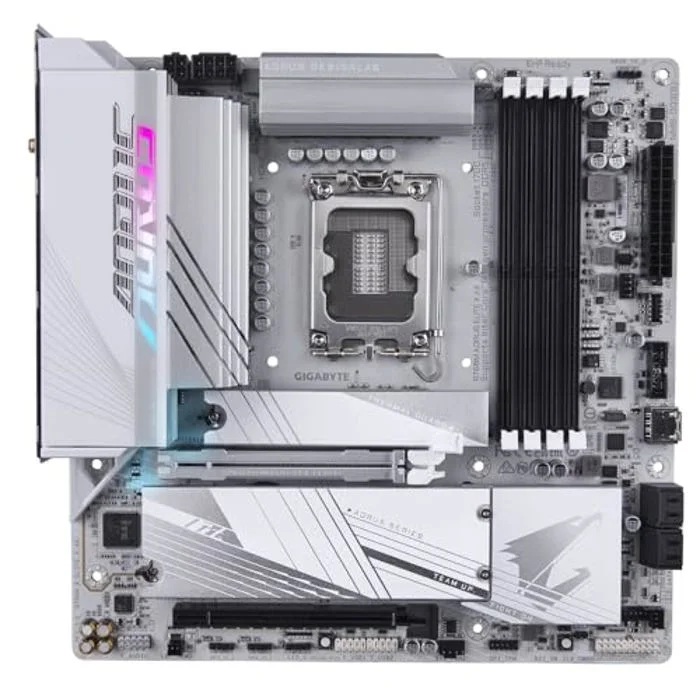

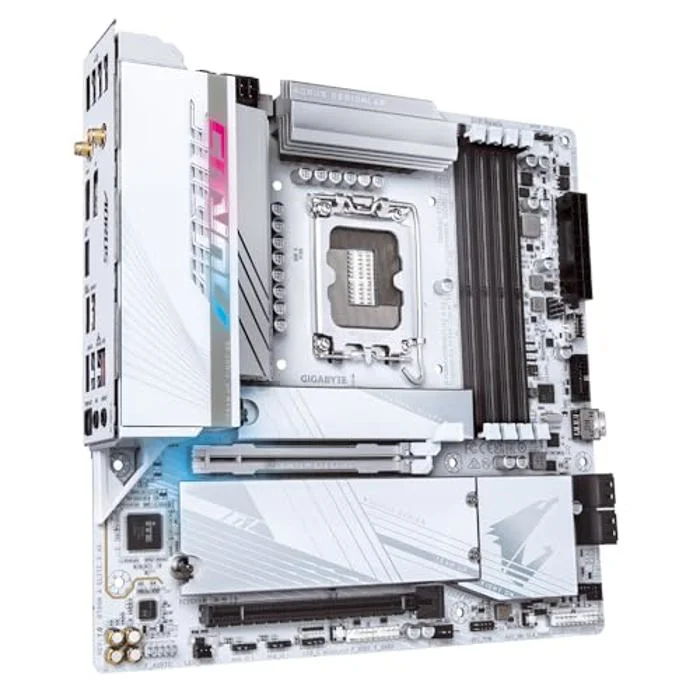

The Gigabyte B760M AORUS ELITE X AX is a Micro-ATX motherboard for LGA1700. It supports DDR5 memory up to 8266 MT/s (OC).
- Supports Intel Core 14th and 13th processors
- Digital twin 14+1+1 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：2*M.2 PCIe 4.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B760M AORUS ELITE X AX |
| Launch Date | October 2023 |
| CPU Socket | LGA1700 |
| Chipset Model | Intel B760 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 192 GB |
| Valid DDR4 Speeds | DDR5-4000 / DDR5-4800 / DDR5-5200 / DDR5-5400 / DDR5-5600 / DDR5-5800 / DDR5-6000 / DDR5-6200 / DDR5-6400 / DDR5-6600 / DDR5-6800 / DDR5-7000 / DDR5-7200 / DDR5-7400 / DDR5-7600 / DDR5-7800 / DDR5-7900 / DDR5-7950 / DDR5-8000 / DDR5-8200 / DDR5-8266 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 6E (802.11ax, 6 GHz) |

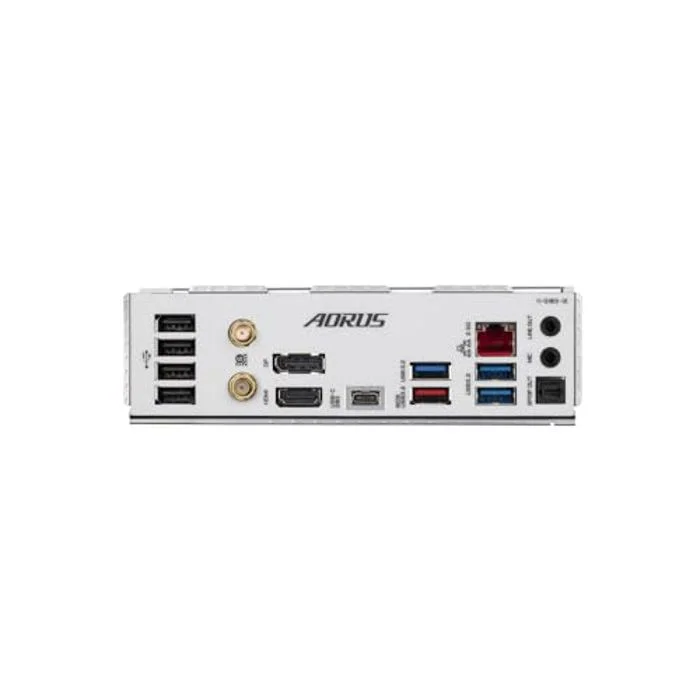

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B760M AORUS ELITE X AX |
| SKU Code | B760M AORUS ELITE X AX |
| GTIN / EAN | 4719331859329 |
