Description

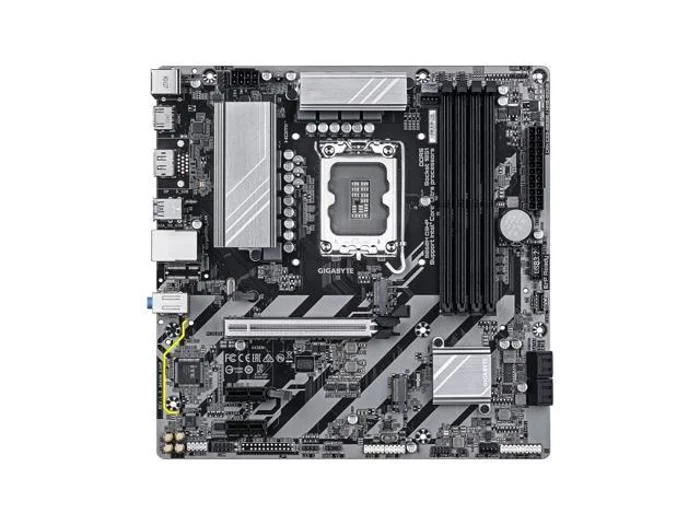

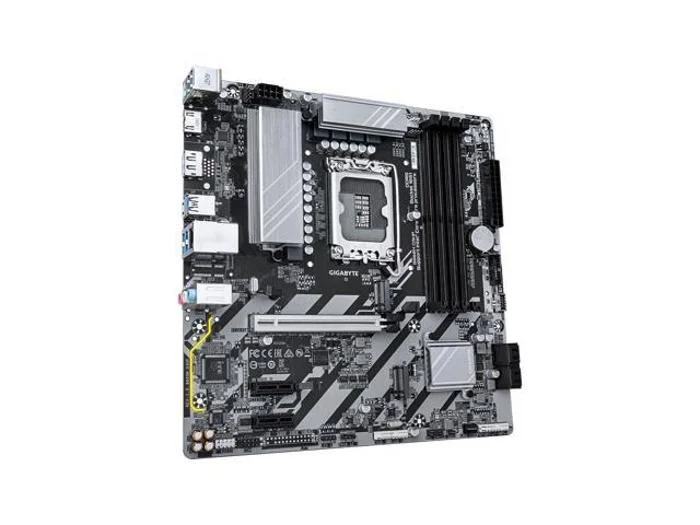

The Gigabyte B860M D3HP is a Micro-ATX motherboard for LGA1851. It supports DDR5 memory up to 9066 MT/s (OC).
- GIGABYTE B860M D3HP Intel Core Ultra (Series 2) LGA 1851 Motherboard, mATX, DDR5, 2x M.2, PCIe 5.0, USB-C, 1GbE LAN, EZ-Latch Memory Standard: DDR5 5600 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 Number of Memory Slots: 4x288pin (DDR5) PCI Express 5.0 x16: CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. PCI Express 4.0 x16: Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Max LAN Speed: 1Gbps CPU Type: Intel Core Ultra Processors (Series 2) Maximum Memory Supported: 256GB Channel Supported: Dual Channel
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | B860M D3HP |
| Launch Date | January 2025 |
| CPU Socket | LGA1851 |
| Chipset Model | Intel B860 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR5 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 256 GB |
| Valid DDR4 Speeds | DDR5-4800 / DDR5-9066 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2280 - M Key, 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

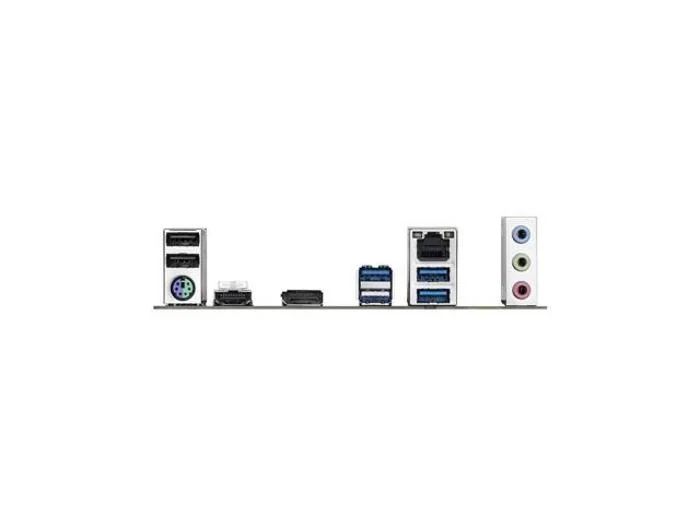

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | B860M D3HP |
| SKU Code | B860M D3HP |
| GTIN / EAN | 889523046937 |
