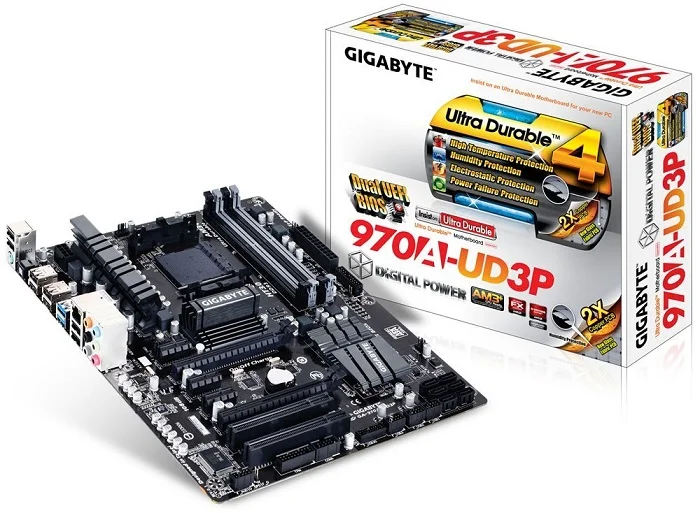

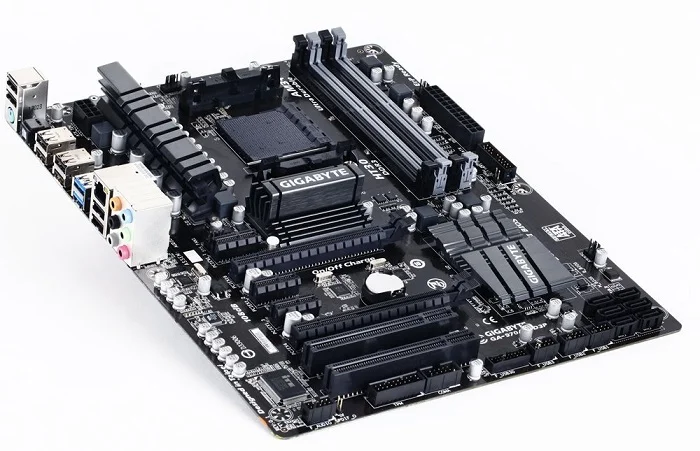

GIGABYTE GA-970A-UD3P AM3+ ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-970A-UD3P is a ATX motherboard for AM3+. It supports DDR3 memory up to 2000 MT/s (OC).
- CPU: AMD AM3+ FX processors, AMD AM3 Phenom II processor/ AMD Athlon II processor
- Chipsets: AMD 970/AMD SB950
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB memory; DDR3 2000(O.C.)/1866/1600/1333/1066 MHz
- LAN: 10/100/1000 Mbit
- Expansion Slots: 1 x PCI Express x16 slot, running at x16, 1 x PCI Express x16 slot, running at x4, 3 x PCI Express x1 slots, 2 x PCI slots
- Storage Interface: 6 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD
- USB: 14 USB 2.0/1.1 ports; Up to 4 USB 3.0/2.0 ports
- Very good overclock capabilities
- UEFI BIOS
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-970A-UD3P |
| Launch Date | December 2013 |
| CPU Socket | AM3+ |
| Chipset Model | 970 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

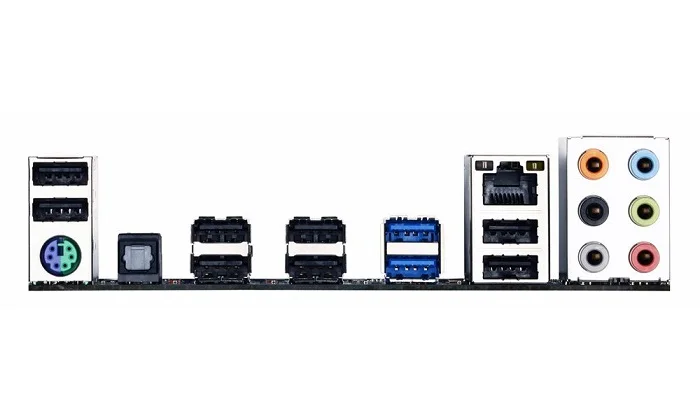

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-970A-UD3P |
| SKU Code | GA-970A-UD3P |
| GTIN / EAN | 6.7518367742e+10 |
