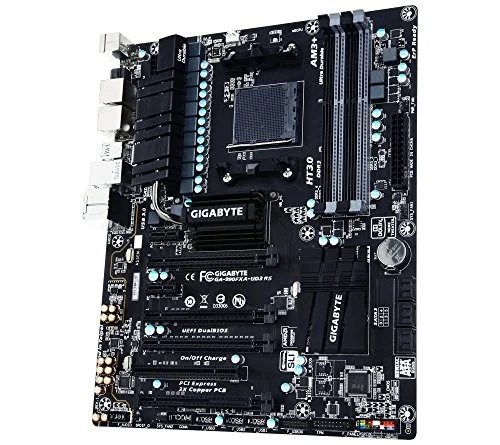

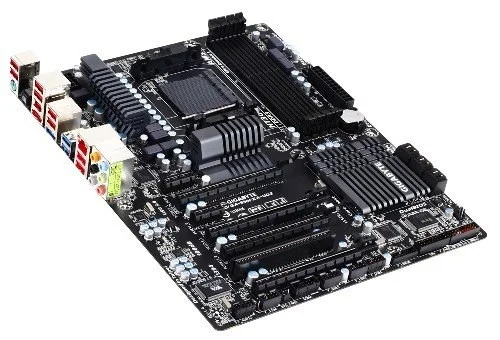

GIGABYTE GA-990FXA-UD3 AM3+ ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-990FXA-UD3 is a ATX motherboard for AM3+. It supports DDR3 memory up to 2000 MT/s (OC).
- Storage Interface:6 x SATA 6Gb/s connectors,Support for SATA RAID 0, RAID 1, RAID 5,RAID 10 and JBOD, 2 x eSATA 6Gb/s Support for RAID 0 and RAID 1
- Expansion Slots: 2 x PCI Express x16 slot running at x16 ,1x PCI Express x4 slots, 2 x PCI Express x1 slot, 1x PCI slots
- Memory: 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory.
- CPU: AM3+/AM3/AMD Athlon II Chipsets: AMD 990FX/AMD SB950. Revision 1.1.
- Audio: Realtek ALC889 codec , High Definition Audio, Dolby Home Theater, 2/4/5.1/7.1-channel, LAN: 10/100/1000 Mbit
- 4x PCI Express x16 slots (2x running at x16 + 2x running at x4)
- Support for AMD CrossFire and NVIDIA SLI
- 2x eSATA and FireWire ports
- Software could be improved
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-990FXA-UD3 |
| Launch Date | July 2011 |
| CPU Socket | AM3+ |
| Chipset Model | 990FX |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-990FXA-UD3 |
| SKU Code | GA-990FXA-UD3 |
| GTIN / EAN | 172302908916 |
