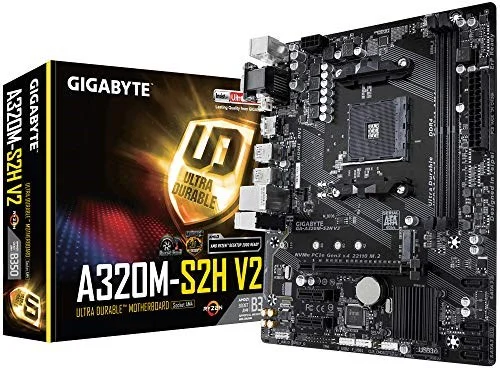

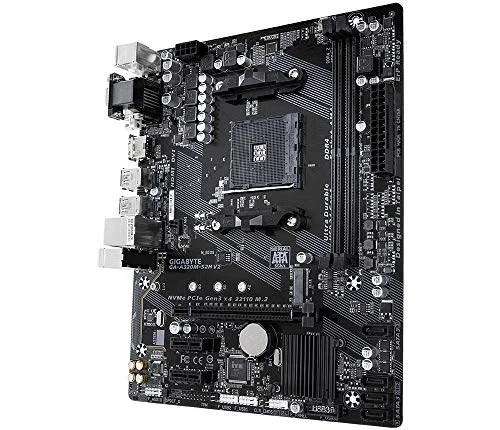

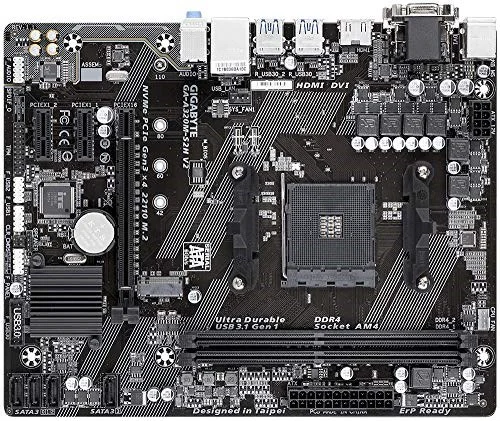

Gigabyte GA-A320M-S2H V2 AM4 Micro-ATX DDR4 32 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte GA-A320M-S2H V2 is a Micro-ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- 32GB Dual DDR4-SDRAM
- Micro ATX Form Factor

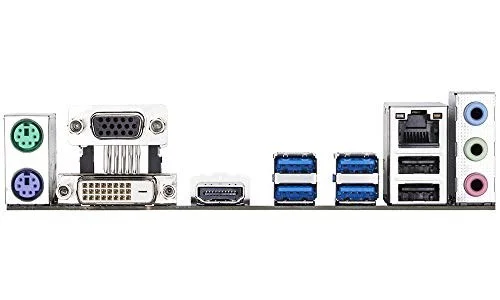

- Ports: 2 X USB2.0, 4 X USB3.0 Type-A, 1 X LAN (RJ-45), 2 X PS/2, 1 X VGA (D-Sub), 1 X HDMI, 1 X DVI-D
- Chipset: AMD B350
- Supports AMD Ryzen & 7Th Generation A-Series, Athlon Processors
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | GA-A320M-S2H V2 |
| Launch Date | February 2020 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B350 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-A320M-S2H V2 |
| SKU Code | GA-A320M-S2H V2 |
| GTIN / EAN | 4719331804725 |
Price History (last 12 months)
Plots available price points within the past 12 months.
