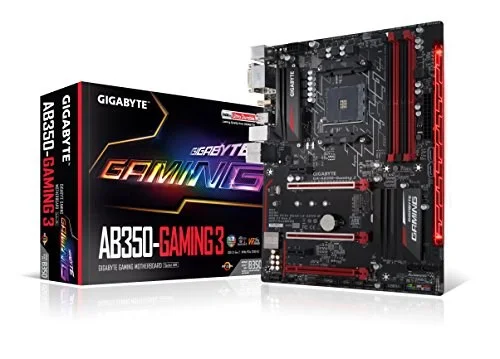

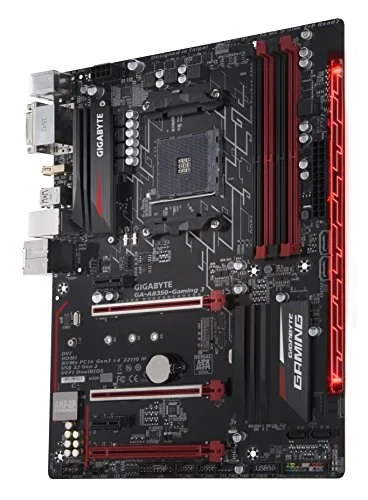

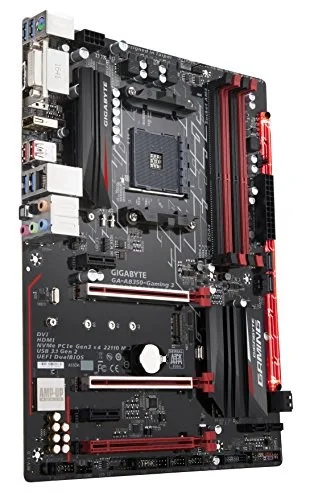

GIGABYTE GA-AB350-Gaming 3 AM4 ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-AB350-Gaming 3 is a ATX motherboard for AM4. It supports DDR4 memory up to 3200 MT/s (OC).
- Supports AMD Ryzen & 7th Generation A-series / Athlon Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Fast 2 USB 3.1 Gen 2 with USB Type-A
- 2-Way CrossFire Multi-Graphics Support with Ultra Durable Metal Shielding over PCIe Slots
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- ALC1220 120dB SNR HD Audio with Smart Headphone Amp
- Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
- USB DAC-UP 2 & 2 Front USB 3.0 Ports with Adjustable Voltage
- RGB FUSION with Multi-Zone LED Light Show design
- Swappable Overlay for Accent LED
- Smart Fan 5 features 6 Temperature Sensors and 5 Hybrid Fan Headers
- GIGABYTE UEFI DualBIOS
- APP Center Including EasyTune and Cloud Station Utilities
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-AB350-Gaming 3 |
| Launch Date | March 2017 |
| CPU Socket | AMD Socket AM4 |
| Chipset Model | Intel B350 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2933 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-AB350-Gaming 3 |
| SKU Code | GA-AB350-Gaming 3 |
| GTIN / EAN | 889523009093 |
