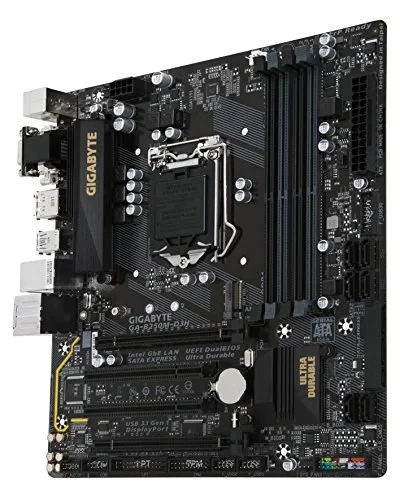

Gigabyte GA-B250M-D3H LGA1151 Micro-ATX DDR4 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte GA-B250M-D3H is a Micro-ATX motherboard for LGA1151. It supports DDR4 memory up to 2400 MT/s (OC).
- Supports 7th/6th Generation Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- 2-Way Crossfire Multi-Graphics Support
- SATA Express Connector for up to 16Gb/s Data Transfer
- Ultra-Fast M.2 with Pie Gen3 x4 & SATA interface
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | GA-B250M-D3H |
| Launch Date | January 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel B250 |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 / 22110 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | No |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-B250M-D3H |
| SKU Code | GA-B250M-D3H |
| GTIN / EAN | 656237194106 |
Price History (last 12 months)
Plots available price points within the past 12 months.
