GIGABYTE GA-F2A88XM-D3H FM2+ Micro-ATX DDR3 64 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

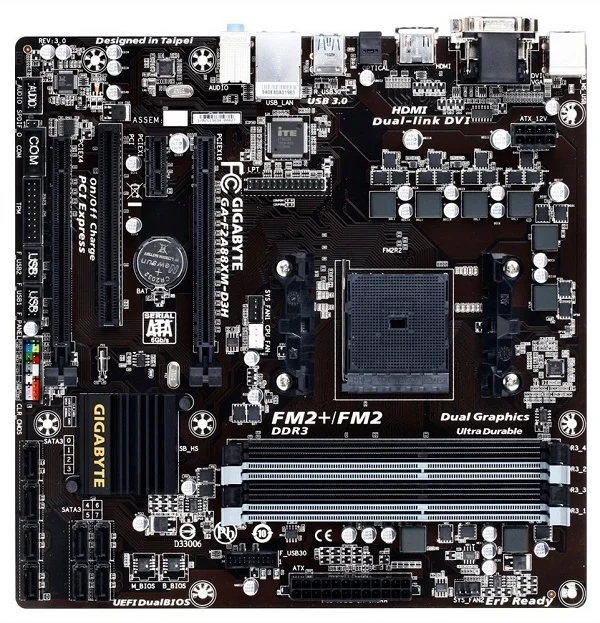

The GIGABYTE GA-F2A88XM-D3H is a Micro-ATX motherboard for FM2+. It supports DDR3 memory up to 2133 MT/s (OC).
- Socket FM2+ supports AMD FM2+/FM2 A-series APU
- GIGABYTE Ultra Durable 4 Plus Technology
- GIGABYTE UEFI DualBIOS
- 2-way CrossFire Support
- GIGABYTE On/Off Charge for USB devices
- 4 USB 3.0 ports with GIGABYTE 3x USB power
- HDMI, Dual-link DVI, D-sub ports for Triple-Monitor support
- High ESD Protection on GbE LAN and USB ports
- All solid capacitors design
- HDMI output
- USB 3.0
- 4x DDR3 DIMM Slots
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-F2A88XM-D3H |
| Launch Date | October 2013 |
| CPU Socket | FM2+ |
| Chipset Model | Intel A88X |
| Board Size / Form Factor | Micro-ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-1333 / DDR4-1600 / DDR4-1866 / DDR4-2133 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 1 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 1 |
| M.2 Slot Count | 0 × M.2 |
| M.2 Device Compatibility | |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-F2A88XM-D3H |
| SKU Code | GA-F2A88XM-D3H |
| GTIN / EAN | 807320214267 |
