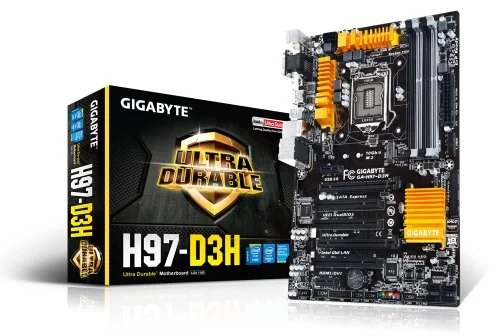

GIGABYTE GA-H97-D3H LGA1150 ATX DDR3 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-H97-D3H is a ATX motherboard for LGA1150. It supports DDR3 memory up to 1600 MT/s (OC).
- Supports 4th and 5th Generation Intel Core processors
- Extreme multi graphics support
- SATA Express support for 10 Gb/s data transfer
- M.2 for SSDs drives with up to 10 Gb/s data transfer
- Intel GbE LAN with CFOS internet accelerator software
- Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier
- Long lifespan Durable Solid caps
- APP Center including EasyTune and Cloud Station utilities
- GIGABYTE UEFI DualBIOS
- Intel Small Business Advantage
- M.2 Support
- Realtek ALC1150 audio
- SATA Express support
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-H97-D3H H97-D3H |
| Launch Date | May 2014 |
| CPU Socket | LGA1150 |
| Chipset Model | Intel H97 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR3 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-1066 / DDR4-1333 / DDR4-1600 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 2 × PCIe x16, 2 × PCIe x1 |
| PCIe x16 (Qty) | 2 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 2 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | No |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-H97-D3H |
| SKU Code | GA-H97-D3H |
| GTIN / EAN | 818313020611 |
