Description

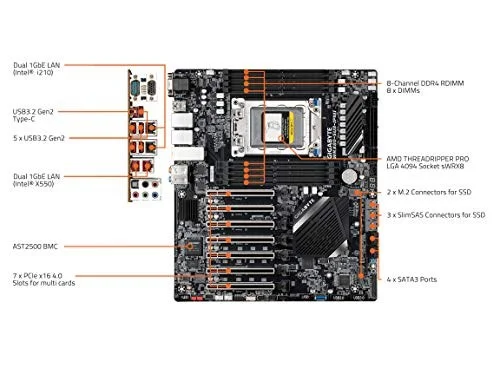

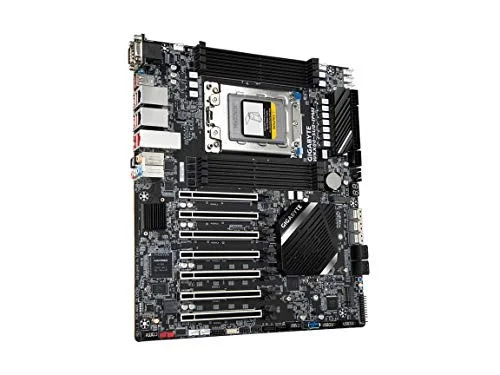

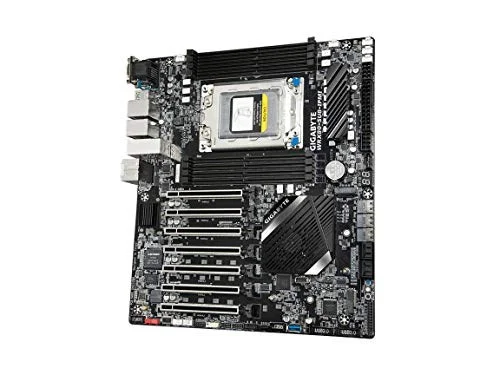

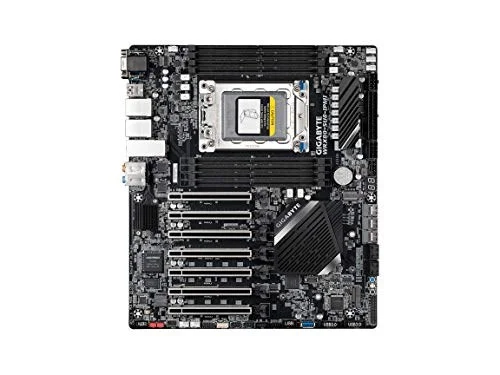

The Gigabyte GA-WRX80-SU8-IPMI is a SSI CEB motherboard for sWRX8. It supports DDR4 memory up to 3200 MT/s (OC).
- AMD Ryzen Threadripper PRO 3000WX Series Processors, sWRX8 4094 Socket
- 8-Channel DDR4 RDIMM 8 x DIMMs
- Aspeed AST2500 BMC
- Dual Intel Server 10G LAN and GbE LAN
- 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX 12
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | WRX80-SU8-IPMI GA-WRX80-SU8-IPMI GA-WRX80-SU8-IPMI (rev. 1.0) |
| Launch Date | March 2021 |
| CPU Socket | sWRX8 |
| Chipset Model | WRX80 |
| Board Size / Form Factor | SSI CEB |
| Supported Memory Type | DDR4 |
| DIMM Slots | 8 |
| Maximum RAM Capacity | 1024 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | Yes * ECC memory support also depends on the CPU memory controller |
| Expansion Slots (PCIe) | 7 × PCIe x16 |
| PCIe x16 (Qty) | 7 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2280 - M Key, 2242 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

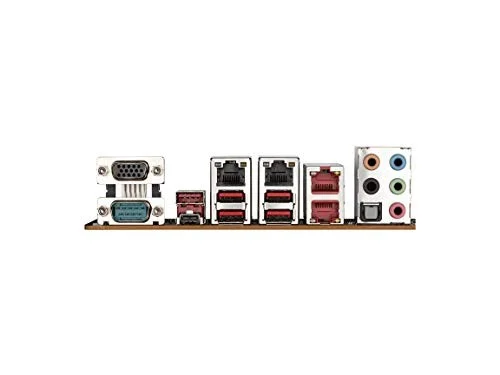

| Rear-Panel USB | USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 1 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | WRX80-SU8-IPMI |
| SKU Code | WRX80-SU8-IPMI |
| GTIN / EAN | 889523026052 |
