GIGABYTE GA-X99-UD3 LGA2011-3 ATX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description

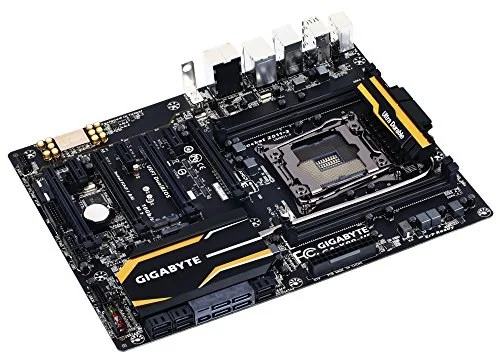

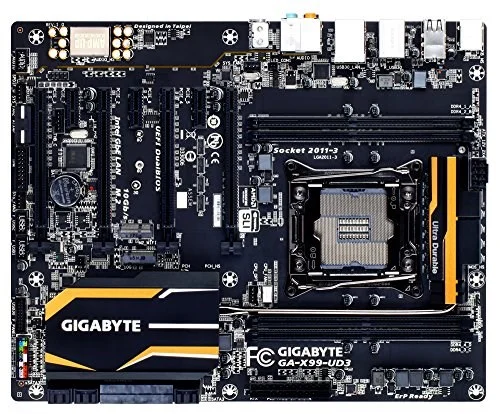

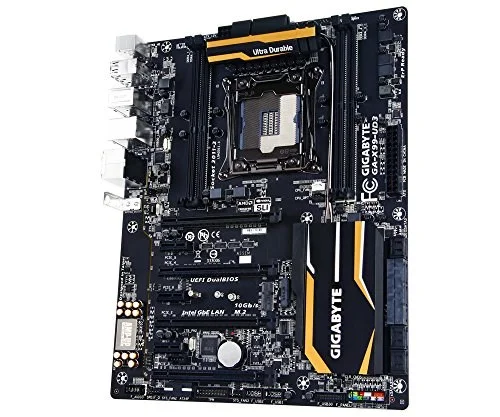

The GIGABYTE GA-X99-UD3 is a ATX motherboard for LGA2011-3. It supports DDR4 memory up to 3000 MT/s (OC).
- | Microsite
- Supports New Intel Core i7 Processor Extreme Edition
- 4 Channel DDR4, 4 DIMMs
- Genuine All Digital Power Design with IR Digital PWM & IR PowIRstage ICs
- 4-Way Graphics with Premium PCIe Lane
- Dual M.2 Technology for SSD Drive and WIFI card
- 6x(30µ) Gold Plating for CPU socket, Memory DIMMs and PCIe slots
- Realtek ALC1150 115dB SNR HD audio with built-in Rear Audio Amplifier
- Independent Right and Left Audio Channel PCB Layers
- LED lighting for the audio guard light path

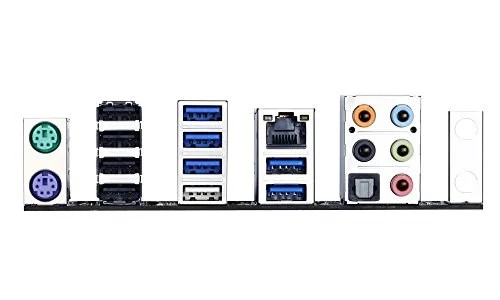

- All Stainless Steel connectors on rear panel
- High end quality audio capacitors
- SATA Express support for up to 10 Gb/s data transfer
- Long lifespan Durable Black Solid caps
- APP Center including EasyTune and Cloud Station utilities
- Thunderbolt Ready
- GIGABYTE UEFI DualBIOS with Q-Flash Plus USB port
- Safer design around screw mounting holes
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-X99-UD3 |
| Launch Date | September 2014 |
| CPU Socket | LGA2011-3 |
| Chipset Model | Intel X99 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2230 - E Key, 2260 / 2280 - M Key |
| SATA III Ports | 8 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-X99-UD3 |
| SKU Code | GA-X99-UD3 |
| GTIN / EAN | 818313021595 |
