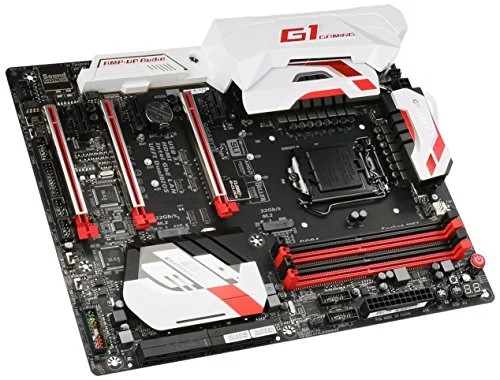

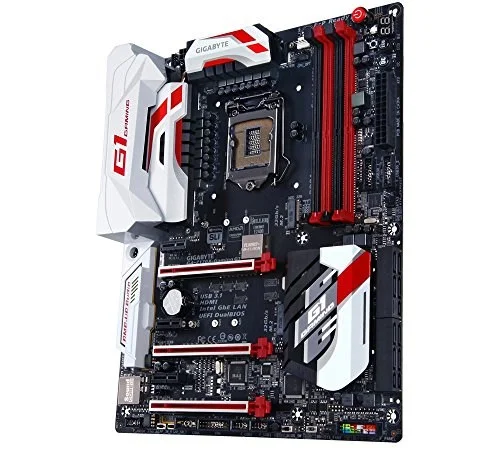

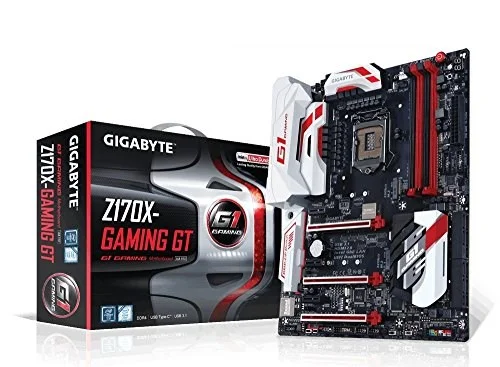

Gigabyte GA-Z170X-Gaming GT LGA1151 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte GA-Z170X-Gaming GT is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3200 MT/s (OC).
- LGA1151
- Memory Socket: 4 x DDR4 DIMM sockets
- Support for 2-Way NVIDIA SLI technology, 3-Way AMD Crossfire

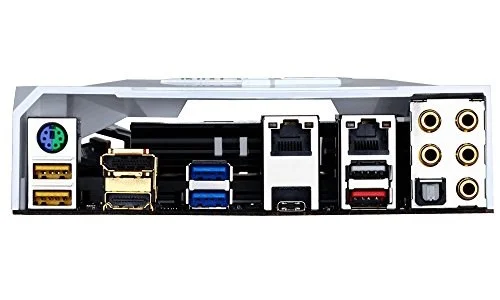

- 1 x USB 3.1 (A+C) port, 9 x USB 3.0 ports, 4 x USB 2.0 ports
- Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 Slot, 3x PCI-Express 3.0 x1 Slots
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | GA-Z170X-Gaming GT |
| Launch Date | |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-2933 / DDR4-3000 / DDR4-3200 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 4 × PCIe x16, 3 × PCIe x1 |
| PCIe x16 (Qty) | 4 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 3 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 6 × SATA 6Gbps |
| SATA Express Ports | 1 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 3 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z170X-Gaming GT |
| SKU Code | GA-Z170X-Gaming GT |
| GTIN / EAN | 889523001929 |
