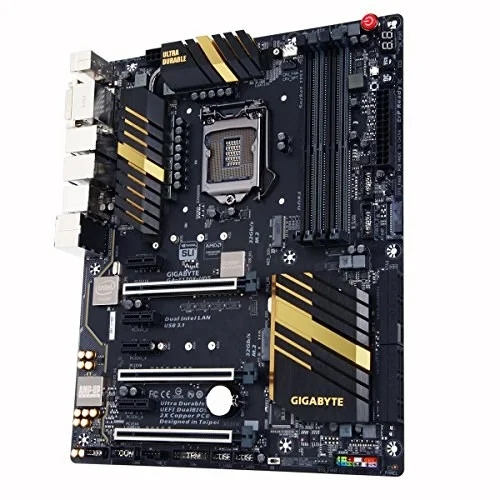

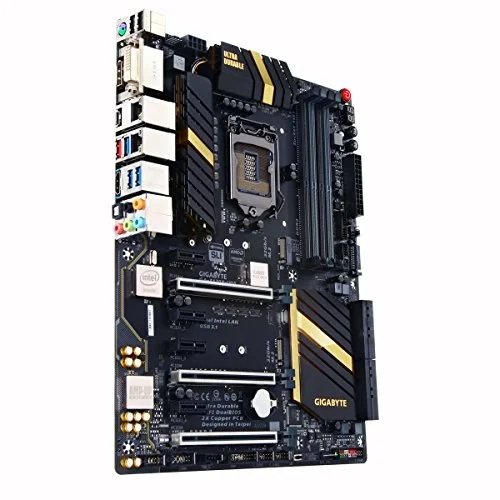

Gigabyte GA-Z170X-UD5 LGA1151 ATX DDR4 64 GB Motherboard
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The Gigabyte GA-Z170X-UD5 is a ATX motherboard for LGA1151. It supports DDR4 memory up to 3800 MT/s (OC).
- LGA1151, Supports 6th Generation Intel Core Processors
- Memory: 4x DDR4 DIMM Slots and Dual Channel.
- Slots: 1x PCI - Express 3.0 x16 Slots, 1x PCI - Express 3.0 x8, 1x PCI - Express 3.0 x4 and 4x PCI - Express 3.0 x1
- Audio: Realtek ALC1150 7.1 - Channel High Definition Audio CODEC.
- Storage Interface: 3 x SATA Express,8 x SATA 3 and 2 x M.2.
- USB: 1 x USB 3.1 (A+C) ports, 7 x USB 3.0 ports and 6 x USB 2.0 ports
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model Number | GA-Z170X-UD5 |
| Launch Date | December 2015 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z170 |
| Board Size / Form Factor | ATX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 4 |
| Maximum RAM Capacity | 64 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 3 × PCIe x16, 4 × PCIe x1 |
| PCIe x16 (Qty) | 3 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 4 |
| M.2 Slot Count | 2 × M.2 |
| M.2 Device Compatibility | 2242 / 2260 / 2280 - M Key, 2242 / 2260 / 2280 - M Key |
| SATA III Ports | 2 × SATA 6Gbps |
| SATA Express Ports | 3 |
| Wired Networking (LAN) | |
| Onboard Wi-Fi | No |
| Wi-Fi Standard | |

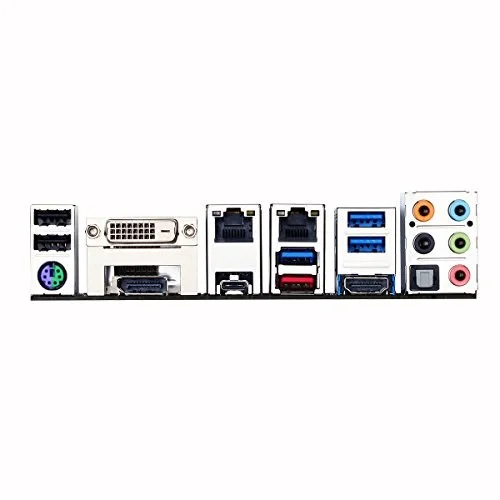

| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 2 |
| Internal USB 2.0 Headers | 2 |
| NVIDIA SLI | Yes |
| AMD CrossFire | Yes |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z170X-UD5 |
| SKU Code | GA-Z170X-UD5 |
| GTIN / EAN | 8.0177823695e+10 |
