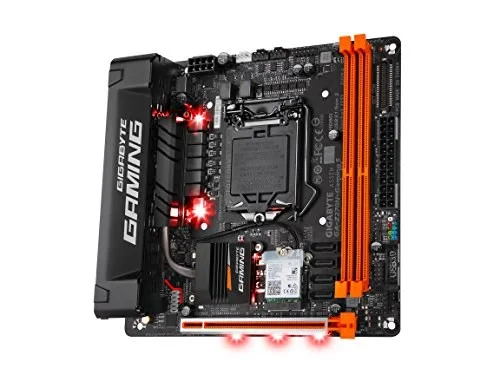

GIGABYTE GA-Z270N-Gaming 5 LGA1151 Mini-ITX DDR4 32 GB Motherboard
| Seller | Shipping | Promo | Price |
|---|---|---|---|
|
- | - | |
|
- | - |
N/A
|
|
- | - |
N/A
|
|
- | - |
N/A
|
* PC Pro Guide may earn a small commission when you buy through links on our site. (Affiliate disclosure)
* Prices and availability can change without notice. The price and stock status displayed on Amazon at the time you complete your purchase are the ones that apply.
Description
The GIGABYTE GA-Z270N-Gaming 5 is a Mini-ITX motherboard for LGA1151. It supports DDR4 memory up to 4000 MT/s (OC).
- Supports 7th/ 6th Generation Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Supports PCIe x16 slot bifurcation in 2x8 mode by riser card
- Fast USB 3.1 Gen 2 with USB Type-C and Type-A
- Support OC Touch Panel for Extreme Overclocking
- Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
- Intel Optane Memory Ready
- ALC1220 120dB SNR HD Audio with Smart Headphone Amp
- 802.11ac Dual Band 867Mbps wireless supports MU-MIMO and BT4.2
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- RGB FUSION LED Light Show design
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers
- GIGABYTE UEFI BIOS
- APP Center Including EasyTune and Cloud Station Utilities
Specifications
| Manufacturer | GIGABYTE |
|---|---|
| Model Number | GA-Z270N-Gaming 5 |
| Launch Date | February 2017 |
| CPU Socket | LGA1151 |
| Chipset Model | Intel Z270 |
| Board Size / Form Factor | Mini-ITX |
| Supported Memory Type | DDR4 |
| DIMM Slots | 2 |
| Maximum RAM Capacity | 32 GB |
| Valid DDR4 Speeds | DDR4-2133 / DDR4-2400 / DDR4-2666 / DDR4-2800 / DDR4-3000 / DDR4-3200 / DDR4-3300 / DDR4-3333 / DDR4-3400 / DDR4-3466 / DDR4-3600 / DDR4-3666 / DDR4-3733 / DDR4-3800 / DDR4-3866 / DDR4-4000 (OC) |
| ECC Memory Support | No |
| Expansion Slots (PCIe) | 1 × PCIe x16 |
| PCIe x16 (Qty) | 1 |
| PCIe x4 (Qty) | 0 |
| PCIe x1 (Qty) | 0 |
| M.2 Slot Count | 1 × M.2 |
| M.2 Device Compatibility | 2260 / 2280 - M Key |
| SATA III Ports | 4 × SATA 6Gbps |
| SATA Express Ports | 0 |
| Wired Networking (LAN) | GbE LAN |
| Onboard Wi-Fi | Yes |
| Wi-Fi Standard | 5 |
| Rear-Panel USB | USB 3.2 Gen1, USB 2.0 |
| Internal USB 3.2 Gen 2x2 Headers | 0 |
| Internal USB 3.2 Gen 2 Headers | 0 |
| Internal USB 3.2 Gen 1 Headers | 1 |
| Internal USB 2.0 Headers | 1 |
| NVIDIA SLI | No |
| AMD CrossFire | No |
| RAID Capability | Yes |
| Back-Connect Layout | No |
| Manufacturer Part Number (MPN) | GA-Z270N-Gaming 5 |
| SKU Code | GA-Z270N-Gaming 5 |
| GTIN / EAN | 889523008720 |
